74ALVCH16827

Features: • Wide supply voltage range of 1.2V to 3.6V• Complies with JEDEC standard no. 8-1A• Wide supply voltage range of 1.2V to 3.6V• CMOS low power consumption• Direct interface with TTL levels• Universal bus transceiver with D-type latches and D-type flip-f...

product image

74ALVCH16827 Picture
SeekIC No. : 004249447 Detail

74ALVCH16827: Features: • Wide supply voltage range of 1.2V to 3.6V• Complies with JEDEC standard no. 8-1A• Wide supply voltage range of 1.2V to 3.6V• CMOS low power consumption• Dir...

floor Price/Ceiling Price

Part Number:
74ALVCH16827
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide supply voltage range of 1.2V to 3.6V
• Complies with JEDEC standard no. 8-1A
• Wide supply voltage range of 1.2V to 3.6V
• CMOS low power consumption
• Direct interface with TTL levels
• Universal bus transceiver with D-type latches and D-type flip-flops capable of operating in transparent, latched, clocked or clocked-enabled mode.
• MULTIBYTETM flow-through standard pin-out architecture
• Low inductance multiple VCC and GND pins for minimum noise and ground bounce
• Current drive ±24 mA at 3.0 V
• All inputs have bus hold circuitry
• Output drive capability 50W transmission lines @ 85°C
• 3-State non-inverting outputs for bus oriented applications



Pinout

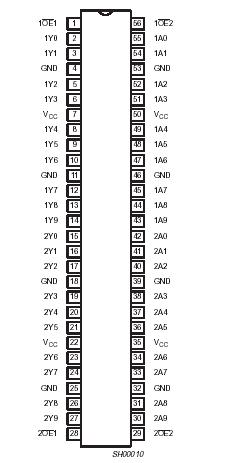

  Connection Diagram


Specifications

SYMBOL
PARAMETER CONDITIONS
RATING
UNIT
VCC
DC supply voltage
0.5 to +4.6
V
IIK
DC input diode current VI<0
-50
mA
VI
DC input voltage For control pins2
0.5 to +4.6
V
For data inputs2
0.5 to VCC +0.5
IOK
DC output diode current VO>VCC or VO<0
±50
mA
VO
DC output voltage Note2
-50toVcc+0.5
V
IO
DC output source or sink current VO = 0 to VCC
±50
mA
IGND, ICC
DC VCC or GND current
±100
mA
Tstg
Storage temperature range
-65to+150
PTOT
Power dissipation per package
plastic medium-shrink (SSOP)
plastic thin-medium-shrink (TSSOP)
For temperature range: 40 to +125 °C
above +55°C derate linearly with 11.3 mW/K
above +55°C derate linearly with 8 mW/K
850
600
m/W



Description

The 74ALVCH16827 is a 20-bit non-inverting buffer/driver with 3-State outputs for bus oriented applications.

The 74ALVCH16827 consists of two 10-bit sections with separate output enable signals. For either 10-bit buffer section, the two output enable (1OE1 and 1OE2 or 2OE1 and 2OE2) inputs must both be active. If either output enable input is high, the outputs of that 10-bit buffer section are in high impedance state.

The 74ALVCH16827 has active bus hold circuitry which is provided to hold unused or floating data inputs at a valid logic level. This feature eliminates the need for external pull-up or pull-down resistors.
