74ALVCH16821

Features: • Wide supply voltage range of 1.2V to 3.6V• Complies with JEDEC standard no. 8-1A• Current drive ± 24 mA at 3.0 V• CMOS low power consumption• Direct interface with TTL levels• MULTIBYTETM flow-through standard pin-out architecture• Low inductan...

product image

74ALVCH16821 Picture
SeekIC No. : 004249444 Detail

74ALVCH16821: Features: • Wide supply voltage range of 1.2V to 3.6V• Complies with JEDEC standard no. 8-1A• Current drive ± 24 mA at 3.0 V• CMOS low power consumption• Direct interfa...

floor Price/Ceiling Price

Part Number:
74ALVCH16821
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/29

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide supply voltage range of 1.2V to 3.6V
• Complies with JEDEC standard no. 8-1A
• Current drive ± 24 mA at 3.0 V
• CMOS low power consumption
• Direct interface with TTL levels
• MULTIBYTETM flow-through standard pin-out architecture
• Low inductance multiple VCC and ground pins for minimum noise and ground bounce
• All data inputs have bus hold
• Output drive capability 50W transmission lines @ 85°C



Pinout

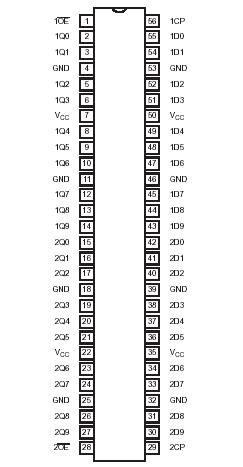

  Connection Diagram


Specifications

SYMBOL
PARAMETER CONDITIONS
RATING
UNIT
VCC
DC supply voltage
0.5 to +4.6
V
IIK
DC input diode current VI<0
-50
mA
VI
DC input voltage For control pins1
0.5 to +4.6
V
For data inputs1
0.5 to VCC +0.5
IOK
DC output diode current VO>VCC or VO<0
±50
mA
VO
DC output voltage Note 1
-50toVcc+0.5
V
IO
DC output source or sink current VO = 0 to VCC
±50
mA
IGND, ICC
DC VCC or GND current
±100
mA
Tstg
Storage temperature range
-65to+150
PTOT
Power dissipation per package
plastic medium-shrink (SSOP)
plastic thin-medium-shrink (TSSOP)
For temperature range: 40 to +125 °C
above +55°C derate linearly with 11.3 mW/
above +55°C derate linearly with 8 mW/K
850
600
m/W



Description

The 74ALVCH16821 has two 10-bit, edge triggered registers, with each register coupled to a 3-State output buffer. The two sections of each register are controlled independently by the clock (nCP) and Output Enable (nOE) control gates.

Each register of the 74ALVCH16821 is fully edge triggered. The state of each D input, one set-up time before the Low-to-High clock transition, is transferred to the corresponding flip-flop's Q output.

When nOE is LOW, the data of the 74ALVCH16821 in the register appears at the outputs. When nOE is HIGH, the outputs are in high impedance OFF state. Operation of the nOE input does not affect the state of the flip-flops.

The 74ALVCH16821 has active bus hold circuitry which is provided to hold unused or floating data inputs at a valid logic level. This feature eliminates the need for external pull-up or pull-down resistors.
