Features: • Complies with JEDEC standard no. 8-1A• CMOS low power consumption• MULTIBYTETM flow-through pin-out architecture• Low inductance, multiple VCC and ground pins for minimum noise and ground bounce• Direct interface with TTL levels• Current drive ± 24 m...

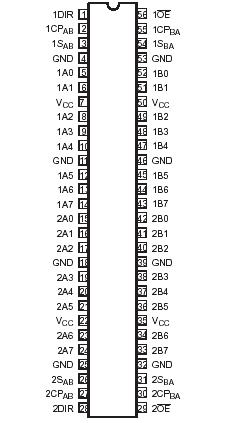

74ALVCH16646: Features: • Complies with JEDEC standard no. 8-1A• CMOS low power consumption• MULTIBYTETM flow-through pin-out architecture• Low inductance, multiple VCC and ground pins for...
