Product Details

Description



Features:

• Complies with JEDEC standard no. 8-1A.
• CMOS low power consumption
• Direct interface with TTL levels
• Current drive ± 24 mA at 3.0 V
• All inputs have bus hold circuitry
• Output drive capability 50W transmission lines @ 85°C
• MULTIBYTETM flow-through standard pin-out architecture
• Low inductance multiple VCC and ground pins for minimum noise and ground bounce



Pinout

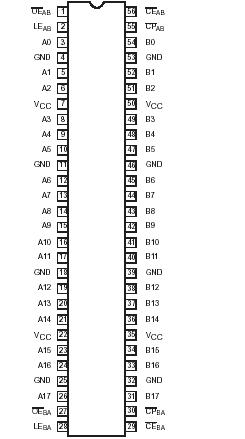

  Connection Diagram


Specifications

SYMBOL
PARAMETER CONDITIONS
RATING
UNIT
VCC
DC supply voltage
0.5 to +4.6
V
IIK
DC input diode current VI<0
-50
mA
VI
DC input voltage For control pins1
0.5 to +4.6
V
For data inputs1
0.5 to VCC +0.5
IOK
DC output diode current VO>VCC or VO<0
±50
mA
VO
DC output voltage Note 1
-50toVcc+0.5
V
IO
DC output source or sink current VO = 0 to VCC
±50
mA
IGND, ICC
DC VCC or GND current
±100
mA
Tstg
Storage temperature range
-65to+150
PTOT
Power dissipation per package
plastic thin-medium-shrink (TSSOP)
For temperature range: 40 to +125 °C
above +55°C derate linearly with 8 mW/K
600
m/W



Description

The 74ALVCH16600 is an 18-bit universal transceiver featuring non-inverting 3-State bus compatible outputs in both send and receive directions. Data flow in each direction is controlled by output enable (OEAB and OEBA), latch enable (LEAB and LEBA), and clock (CPAB and CPBA) inputs. For A-to-B data flow, the device operates in the transparent mode when LEAB is High. When LEAB is Low, the A data is latched if CPAB is held at a High or Low logic level. If LEAB is Low, the A-bus data is stored in the latch/flip-flop on the High-to-Low transition of CPAB. When OEAB is Low, the outputs are active. When OEAB is High, the outputs are in the high-impedance state. The High clock of the 74ALVCH16600 can be ontrolled with the clock-enable inputs (CEBA/CEAB).

Data of the 74ALVCH16600 flow for B-to-A is similar to that of A-to-B but uses OEBA, LEBA and CPBA.

To ensure the high impedance state during power up or power down, OEBA and OEAB should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking/current-sourcing capability of the driver.

Active bus hold circuitry of the 74ALVCH16600 is provided to hold unused or floating data inputs at a valid logic level.
