74ALVCH16501

Features: • Complies with JEDEC standard no. 8-1A.• CMOS low power consumption• Direct interface with TTL levels• Current drive ± 24 mA at 3.0 V• Universal bus transceiver with D-type latches and D-type flip-flops capable of operating in transparent, latched or clocke...

product image

74ALVCH16501 Picture
SeekIC No. : 004249434 Detail

74ALVCH16501: Features: • Complies with JEDEC standard no. 8-1A.• CMOS low power consumption• Direct interface with TTL levels• Current drive ± 24 mA at 3.0 V• Universal bus transcei...

floor Price/Ceiling Price

Part Number:
74ALVCH16501
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/29

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Complies with JEDEC standard no. 8-1A.
• CMOS low power consumption
• Direct interface with TTL levels
• Current drive ± 24 mA at 3.0 V
• Universal bus transceiver with D-type latches and D-type flip-flops capable of operating in transparent, latched or clocked mode.
• All inputs have bushold circuitry
• Output drive capability 50W transmission lines @ 85°C
• 3-State non-inverting outputs for bus oriented applications



Pinout

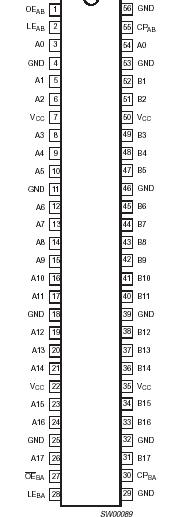

  Connection Diagram


Specifications

SYMBOL
PARAMETER CONDITIONS
RATING
UNIT
VCC
DC supply voltage
0.5 to +4.6
V
IIK
DC input diode current VI<0
-50
mA
VI
DC input voltage For control pins1
0.5 to +4.6
V
For data inputs1
0.5 to VCC +0.5
IOK
DC output diode current VO>VCC or VO<0
±50
mA
VO
DC output voltage Note 1
-50toVcc+0.5
V
IO
DC output source or sink current VO = 0 to VCC
±50
mA
IGND, ICC
DC VCC or GND current
±100
mA
Tstg
Storage temperature range
-65to+150
PTOT
Power dissipation per package
plastic thin-medium-shrink (TSSOP)
For temperature range: 40 to +125 °C
above +55°C derate linearly with 8 mW/K
600
m/W



Description

The 74ALVCH16501 is an 18-bit universal transceiver featuring non-inverting 3-State bus compatible outputs in both send and receive directions. Data flow in each direction is controlled by output enable (OEAB and OEBA), latch enable (LEAB and LEBA), and clock (CPAB and CPBA) inputs. For A-to-B data flow, the 74ALVCH16501 operates in the transparent mode when LEAB is High. When LEAB is Low, the A data is latched if CPAB is held at a High or Low logic level. If LEAB is Low, the A-bus data is stored in the latch/flip-flop on the Low-to-High transition of CPAB. When OEAB is High, the outputs are active. When OEAB is Low, the outputs are in the high-impedance state.

Data of the 74ALVCH16501 flow for B-to-A is similar to that of A-to-B but uses OEBA, LEBA and CPBA. The output enables are complimentary (OEAB is active High, and OEBA is active Low).

To ensure the high impedance state of the 74ALVCH16501 during power up or power down, OEBA should be tied to VCC through a pullup resistor and OEAB should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the  current-sinking/current-sourcing capability of the driver.

Active bus hold circuitry is provided to hold unused or floating data inputs at a valid logic level.
