74ALVCH162374

Features: ` 1.65V to 3.6V VCC supply operation` 3.6V tolerant control inputs and outputs` Bushold data inputs eliminates the need for external pull-up/pull-down resistors` 26 series resistors in outputs` tPD (CLK to On)4.6 ns max for 3.0V to 3.6V VCC5.4 ns max for 2.3V to 2.7V VCC9.6 ns max for 1....

product image

74ALVCH162374 Picture
See larger image
SeekIC No. : 004249419 Detail

74ALVCH162374: Features: ` 1.65V to 3.6V VCC supply operation` 3.6V tolerant control inputs and outputs` Bushold data inputs eliminates the need for external pull-up/pull-down resistors` 26 series resistors in out...

74ALVCH162374 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ALVCH162374
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 1.65V to 3.6V VCC supply operation
` 3.6V tolerant control inputs and outputs
` Bushold data inputs eliminates the need for external pull-up/pull-down resistors
` 26 series resistors in outputs
` tPD (CLK to On)
4.6 ns max for 3.0V to 3.6V VCC
5.4 ns max for 2.3V to 2.7V VCC
9.6 ns max for 1.65V to 1.95V VCC
` Uses patented noise/EMI reduction circuitry
` Latch-up conforms to JEDEC JED78
` ESD performance:
Human body model > 2000V
Machine model > 200V




Pinout

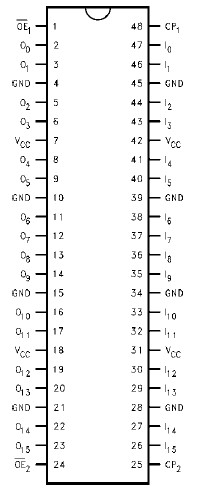

Connection Diagram




Specifications

Supply Voltage (VCC) −0.5V to +4.6V
DC Input Voltage (VI) −0.5V to 4.6V
Output Voltage (VO) (Note 2) −0.5V to VCC +0.5V
DC Input Diode Current (IIK)
VI < 0V −50 mA
DC Output Diode Current (IOK)
VO < 0V −50 mA
DC Output Source/Sink Current
(IOH/IOL) ±50 mA
DC VCC or GND Current per
Supply Pin (ICC or GND)±100 mA
Storage Temperature Range (TSTG) −65°C to +150°C




Description

The 74ALVCH162374 contains sixteen non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and output enable (OE) are common to each byte and can be shorted together for full 16-bit operation.

The 74ALVCH162374 data inputs include active bushold circuitry, eliminating the need for external pull-up resistors to hold unused or floating data inputs at a valid logic level. The 74ALVCH162374 is also designed with 26 series resistors in the outputs. This design reduces line noise in applications such as memory address drivers, clock drivers and bus transceivers/transmitters.

The 74ALVCH162374 is designed for low voltage(1.65V to 3.6V) VCC applications with output compatibility up to 3.6V.

The 74ALVCH162374 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
