Features:

 1.65V to 3.6V VCC supply operation
 3.6V tolerant control inputs and outputs
 Bushold on data inputs eliminates the need for external
pull-up/pull-down resistors
 26 series resistors in outputs
 tPD (In to On)
    3.8 ns max for 3.0V to 3.6V VCC
    5.0 ns max for 2.3V to 2.7V VCC
    9.0 ns max for 1.65V to 1.95V VCC
 Uses patented noise/EMI reduction circuitry
 Latchup conforms to JEDEC JED78
 ESD performance:
    Human body model > 2000V
    Machine model > 200V


Pinout

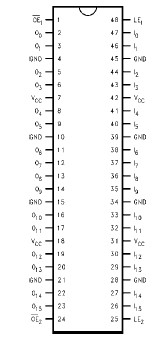

Connection Diagram


Specifications

Supply Voltage (VCC) −0.5V to +4.6V
DC Input Voltage (VI) −0.5V to 4.6V
Output Voltage (VO) (Note 2) −0.5V to VCC +0.5V
DC Input Diode Current (IIK)
VI < 0V ±50 mA
DC Output Diode Current (IOK)
VO < 0V ±50 mA
DC Output Source/Sink Current
(IOH/IOL) ±50 mA
DC VCC or GND Current per
Supply Pin (ICC or GND) ±100 mA
Storage Temperature Range (TSTG) −65 to +150



Description

The 74ALVCH162373 contains sixteen non-inverting latches with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. The flip-flops appear to be transparent to the data when the Latch enable (LE) is HIGH. When LE is LOW, the data that meets the setup time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the outputs are in a high impedance state.

The 74ALVCH162373 data inputs include active bushold circuitry,eliminating the need for external pull-up resistors to hold unused or floating data inputs at a valid logic level.

The 74ALVCH162373 is also designed with 26 series resistors in the outputs. This design reduces line noise in applications such as memory address driver, clock drivers and bus transceivers/transmitters.

The 74ALVCH162373 is designed for low voltage (1.65V to 3.6V) VCC applications with output compatibility up to 3.6V.

The 74ALVCH162373 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
