74ALVCH162245

Features: • Wide supply voltage range of 1.2V to 3.6V• Complies with JEDEC standard no. 8-1A• CMOS low power consumption• MULTIBYTETM flow-through standard pin-out architecture• Low inductance multiple VCC and ground pins for minimum noise and ground bounce• Dir...

product image

74ALVCH162245 Picture
See larger image
SeekIC No. : 004249415 Detail

74ALVCH162245: Features: • Wide supply voltage range of 1.2V to 3.6V• Complies with JEDEC standard no. 8-1A• CMOS low power consumption• MULTIBYTETM flow-through standard pin-out architectu...

74ALVCH162245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ALVCH162245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide supply voltage range of 1.2V to 3.6V
• Complies with JEDEC standard no. 8-1A
• CMOS low power consumption
• MULTIBYTETM flow-through standard pin-out architecture
• Low inductance multiple VCC and ground pins for minimum noise  and ground bounce
• Direct interface with TTL levels
• Bus hold on all data inputs
• Integrated 30W termination resistor


Pinout

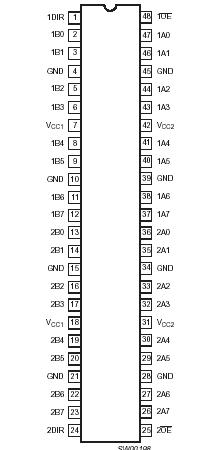

Connection Diagram


Specifications

SYMBOL
 PARAMETER CONDITIONS
RATING
UNIT
VCC
 DC supply voltage
0.5 to +4.6
V
IIK
 DC input diode current VI<0
-50
mA
VI
 DC input voltage For control pins1
0.5 to +4.6
V
For data inputs1
0.5 to VCC +0.5
IOK
 DC output diode current VO>VCC or VO<0
±50
mA
VO
 DC output voltage Note 1
-50toVcc+0.5
V
IO
 DC output source or sink current VO = 0 to VCC
±50
mA
IGND, ICC
 DC VCC or GND current
±100
mA
Tstg
 Storage temperature range
-65to+150
PTOT
 Power dissipation per package
plastic medium-shrink (SSOP)
plastic thin-medium-shrink (TSSOP)		 For temperature range: 40 to +125 °C
above +55°C derate linearly with 11.3 mW/
above +55°C derate linearly with 8 mW/K
850
600
m/W



Description

The 74ALVCH162245 is a 16-bit transceiver featuring non-inverting 3-State bus compatible outputs in both send and receive directions.

The 74ALVCH162245 features two output enable (nOE) inputs for easy cascading and two send/receive (nDIR) inputs for direction control. nOE controls the outputs so that the buses are effectively isolated. This device can be used as two 8-bit transceivers or one 16-bit transceiver.

The 74ALVCH162245 is designed with 30W series resistors in both HIGH and LOW output states.

The 74ALVCH162245 has active bus hold circuitry which is provided to hold unused or floating data inputs at a valid logic level. This feature eliminates the need for external pull-up or pull-down resistors.
