74ALVCH162244

      Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.

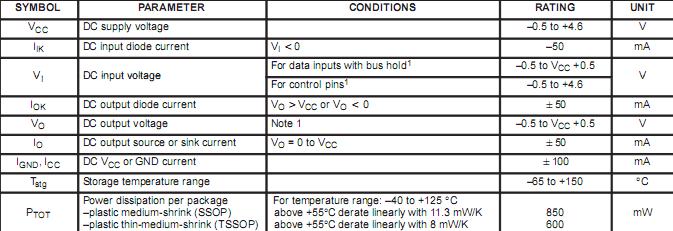

      The 74ALVCH162244 is a high-performance, low-power,low-voltage, Si-gate CMOS device, superior to most advanced CMOS compatible TTL families.

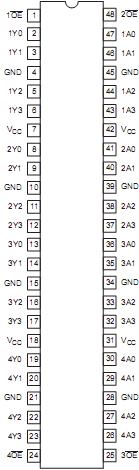

      The 74ALVCH162244 is a 16-bit non-inverting buffer/line driver with 3-State outputs. The device can be used as four 4-bit buffers, two 8-bit buffers or one 16-bit buffer. The 3-State outputs are controlled by the output enable inputs 1OE and 2OE. A HIGH on nOE causesthe outputs to assume a high impedance OFF-state. The 74ALVCH162244 is designed with 30? series resistors in both HIGH and LOW output states.

      The 74ALVCH162244 has active bus hold circuitry which is provided to hold unused or floating data inputs of the 74ALVCH162244 at a valid logic level. This feature eliminates the need for external pull-up or pull-down resistors.
