74ALVCH162240

Features: ` 1.65V to 3.6V VCC supply operation` 3.6V tolerant control inputs and outputs` Bushold on data inputs eliminating the need for external pull-up/pull-down resistors` 26 series resistors in outputs` tPD 3.8 ns max for 3.0V to 3.6V VCC 4.3 ns max for 2.3V to 2.7V VCC 7.6 ns max for 1.65V t...

product image

74ALVCH162240 Picture
See larger image
SeekIC No. : 004249411 Detail

74ALVCH162240: Features: ` 1.65V to 3.6V VCC supply operation` 3.6V tolerant control inputs and outputs` Bushold on data inputs eliminating the need for external pull-up/pull-down resistors` 26 series resistors in...

74ALVCH162240 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ALVCH162240
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 1.65V to 3.6V VCC supply operation
` 3.6V tolerant control inputs and outputs
` Bushold on data inputs eliminating the need for external pull-up/pull-down resistors
` 26 series resistors in outputs
` tPD
    3.8 ns max for 3.0V to 3.6V VCC
    4.3 ns max for 2.3V to 2.7V VCC
    7.6 ns max for 1.65V to 1.95V VCC
` Uses patented noise/EMI reduction circuitry
` Latchup conforms to JEDEC JED78
` ESD performance:
    Human body model > 2000V
    Machine model > 200V


Pinout

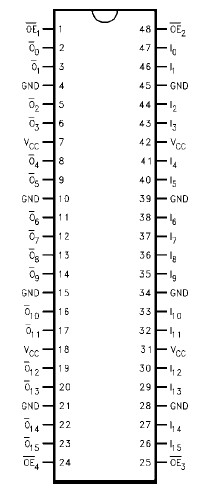

Connection Diagram


Specifications

Supply Voltage (VCC)                            −0.5V to +4.6V
DC Input Voltage (VI)                              −0.5V to 4.6V
Output Voltage (VO) (Note 2)         −0.5V to VCC +0.5V
DC Input Diode Current (IIK)
    VI < 0V                                                        −50 mA
DC Output Diode Current (IOK)
    VO < 0V                                                       −50 mA
DC Output Source/Sink Current
    (IOH/IOL)                                                     ±50 mA
DC VCC or GND Current per
Supply Pin (ICC or GND)                                 ±100 mA
Storage Temperature Range (TSTG) −65°C to +150°C

Note 1: The Absolute Maximum Ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The parametric values defined in the Electrical Characteristics tables are not guaranteed at the Absolute Maximum Ratings. The "Recommended Operating Conditions" table will define the conditions for actual device operation.
Note 2: IO Absolute Maximum Rating must be observed.


Description

The 74ALVCH162240 contains sixteen inverting buffers with 3-STATE outputs to be employed as a memory and address driver, clock driver, or bus oriented transmitter/ receiver. The device is nibble (4-bit) controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full 16-bit operation.

The 74ALVCH162240 data inputs include active bushold circuitry, eliminating the need for external pull-up resistors to hold unused or floating data inputs at a valid logic level. The 74ALVCH162240 is also designed with 26 series resistors in the outputs. This design reduces line noise in applications such as memory address drivers, clock drivers, and bus transceivers/transmitters.

The 74ALVCH162240 is designed for low voltage (1.65V to 3.6V) VCC applications with output capability up to 3.6V. The 74ALVCH162240 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
