74ALVC541

Features: · Wide supply voltage range from 1.65 to 3.6 V· Complies with JEDEC standard: JESD8-7 (1.65 to 1.95 V) JESD8-5 (2.3 to 2.7 V) JESD8B/JESD36 (2.7 to 3.6 V).· 3.6 V tolerant inputs/outputs· CMOS LOW power consumption· Direct interface with TTL levels (2.7 to 3.6 V)· Power-down mode· Latch-...

product image

74ALVC541 Picture
See larger image
SeekIC No. : 004249396 Detail

74ALVC541: Features: · Wide supply voltage range from 1.65 to 3.6 V· Complies with JEDEC standard: JESD8-7 (1.65 to 1.95 V) JESD8-5 (2.3 to 2.7 V) JESD8B/JESD36 (2.7 to 3.6 V).· 3.6 V tolerant inputs/outputs· ...

74ALVC541 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ALVC541
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Wide supply voltage range from 1.65 to 3.6 V
· Complies with JEDEC standard:
  JESD8-7 (1.65 to 1.95 V)
  JESD8-5 (2.3 to 2.7 V)
  JESD8B/JESD36 (2.7 to 3.6 V).
· 3.6 V tolerant inputs/outputs
· CMOS LOW power consumption
· Direct interface with TTL levels (2.7 to 3.6 V)
· Power-down mode
· Latch-up performance exceeds £250 mA
· ESD protection:
  2000 V Human Body Model (JESD22-A114-A)
  200 V Machine Model (JESD22-A115-A).


Pinout

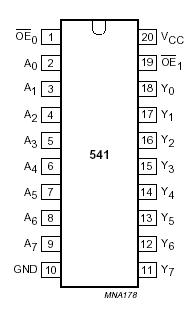

Connection Diagram


Specifications

Symbol
Parameter
CONDITIONS
Min
Max
Unit
VCC
 Supply Voltage
-0.5
+4.6
V
VI
 input voltage

-0.5
+4.6
V
IIK
 input diode current
VI < 0
-50
mA
IOK
 output diode current
VO > VCC or VO < 0
±50
mA
VO
output voltage
enable mode; notes 1 and 2
-0.5
VCC + 0.5
V
disable mode
-0.5
+4.6
V
Power-down mode; note 2
-0.5
+4.6
V
IO
output source or sink current
VO = 0 to VCC
±50
mA
ICC or IGND
 VCC or GND current
±100
mA
Tstg
Storage temperature
-65
+150
Ptot
power dissipation per package
SO package
TSSOP package
above 70 °C derate linearly with
8 mW/K
above 60 °C derate linearly with
5.5 mW/K
500
500
mW
mW



Description

The 74ALVC541 is a high-performance, low-power, low-voltage, Si-gate CMOS device and superior to most advanced CMOS compatible TTL families.

The 74ALVC541 is an octal non-inverting buffer/line driver with 3-state bus compatible outputs. The 3-state outputs are controlled by the output enable inputs OE0 and OE1. A HIGH on OEn causes the outputs to assume a high-impedance OFF-state.
