Product Details

Description



Features:

· Wide supply voltage range from 1.65 to 3.6 V
· Complies with JEDEC standard:
  JESD8-7 (1.65 to 1.95 V)
  JESD8-5 (2.3 to 2.7 V)
  JESD8B/JESD36 (2.7 to 3.6 V).
· 3.6 V tolerant inputs/outputs
· CMOS LOW power consumption
· Direct interface with TTL levels (2.7 to 3.6 V)
· Power-down mode
· Latch-up performance exceeds £250 mA
· ESD protection:
  2000 V Human Body Model (JESD22-A 114-A)
  200 V Machine Model (JESD22-A 115-A).

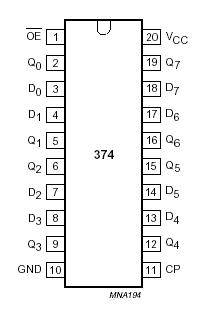

Pinout

  Connection Diagram


Specifications

Symbol
Parameter
CONDITIONS
Min
Max
Unit
VCC
Supply Voltage
-0.5
+4.6
V
VI
input voltage
-0.5
+4.6
V
IIK
input diode current
VI < 0
-50
mA
IOK
output diode current
VO > VCC or VO < 0
±50
mA
VO
output voltage
enable mode; notes 1 and 2
-0.5
VCC + 0.5
V
disable mode
-0.5
+4.6
V
Power-down mode; note 2
-0.5
+4.6
V
IO
output source or sink current
VO = 0 to VCC
±50
mA
ICC or IGND
VCC or GND current
±100
mA
Tstg
Storage temperature
-65
+150
Ptot
power dissipation per package
SO package
TSSOP package
above 70 °C derate linearly with
8 mW/K
above 60 °C derate linearly with
5.5 mW/K
500
500
mW
mW
1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
2. When VCC = 0 V (Power-down mode), the output voltage can be 3.6 V in normal operation.



Description

The 74ALVC374 is a high-performance, low-power, low-voltage, Si-gate CMOS device and superior to most advanced CMOS compatible TTL families.

The 74ALVC374 is an octal D-type flip-flop featuring separate D-type inputs for each flip-flop and 3-state outputs for bus oriented applications. A clock (CP) input and an output enable (OE) input are common to all flip-flops.

The eight flip-flops of the 74ALVC374 will store the state of their individual D-inputs that meet the set-up and hold times requirements on the LOW-to-HIGH CP transition.

When OE is LOW, the contents of the eight flip-flops of the 74ALVC374 is available at the outputs. When OE is HIGH, the outputs go to the high-impedance OFF-state. Operation of the
OE input does not affect the state of the flip-flops.

The '374' is functionally identical to the '574', but the '574' has a different pin arrangement.
