74ALVC2245

Supply Voltage (V_CC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . -0.5V to +4.6V
DC Input Voltage (V_I) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . -0.5V to +4.6V
Output Voltage (V_O)
Outputs 3-STATE . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . -0.5V to +4.6V
Outputs Active (Note 3) . . . . . . . .. . . . . . . . . . . . . . . . . . . . .. . . . . . -0.5V to VCC + 0.5V
DC Input Diode Current (IIK)
VI < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -50 mA
DC Output Diode Current (IOK)
VO < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .. . . . . . . . .-50 mA
VO > V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +50 mA
DC Output Source/Sink Current (IOL/IOL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
DC V_CC or Ground Current per . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . .±100 mA
Supply Pin (I_CC or Ground)
Storage Temperature Range (Tstg) . . . . . . . . . . . . . . . . . . . . . . . .  . . .-65°C to +150°C

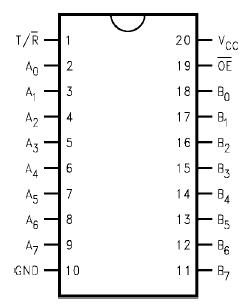

The 74ALVC2245 contains eight non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The T/R input determines the direction of data flow. The OE input disables both the A and B ports by placing them in a high impedance state.

The 74ALVC2245 is designed for low voltage (1.65V to 3.6V) V_CC applications with I/O compatibility up to 3.6V.The ALVC2245 is also designed with 26Ω series resistance in the B Port outputs. This design reduces line noise in applications such as memory address drivers, clock drivers, and bus transceivers transmitters

The 74ALVC2245 is fabricated with an advanced CMOS technology to achieve high-speed operation while maintaining low CMOS power dissipation.
