Features:

1.65V3.6V VCC supply operation
3.6V tolerant inputs and outputs
tPD (Dn to On)
    3.5 ns max for 3.0V to 3.6V VCC
    3.9 ns max for 2.3V to 2.7V VCC
    6.8 ns max for 1.65V to 1.95V VCC
Power-off high impedance inputs and outputs
Supports live insertion and withdrawal (Note 1)
Uses patented noise/EMI reduction circuitry
Latchup conforms to JEDEC JED78
ESD performance:
    Human body model > 2000V
    Machine model > 200V


Pinout

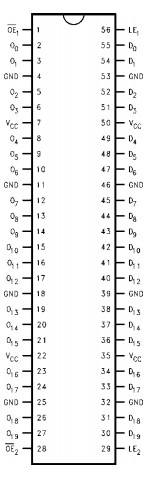

Connection Diagram


Specifications

Supply Voltage (VCC) .........................-0.5V to +4.6V
DC Input Voltage (VI) ...........................-0.5V to 4.6V
Output Voltage (VO) (Note 5)......-0.5V to VCC +0.5V
DC Input Diode Current (IIK)
    VI < 0V .......................................................-50 mA
DC Output Diode Current (IOK)
    VO < 0V ......................................................-50 mA
DC Output Source/Sink Current
    (IOH/IOL) ....................................................±50 mA
DC VCC or GND Current per
Supply Pin (ICC or GND)................................ ±100 mA
Storage Temperature Range (TSTG).-65°C to +150°C
Power Supply
    Operating ..........................................1.65V to 3.6V
Input Voltage (VI).........................................0V to VCC
Output Voltage (VO)......................................0V to VCC
Free Air Operating Temperature (TA). -40°C to +85°C
Minimum Input Edge Rate (t/V)
    VIN = 0.8V to 2.0V, VCC = 3.0V.................... 10 ns/V
Note 4: The Absolute Maximum Ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The parametric values defined in the Electrical Characteristics tables are not guaranteed at the Absolute Maximum Ratings. The "Recommended Operating Conditions" table will define the conditions for actual device operation.
Note 5: IO Absolute Maximum Rating must be observed, limited to 4.6V.
Note 6: Floating or unused control inputs must be held HIGH or


Description

The 74ALVC16841 contains twenty non-inverting latches with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. The flip-flops appear transparent to the data when the Latch enable (LE) is HIGH. When LE is LOW, the data that meets the setup time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the outputs are in a high impedance state.

The 74ALVC16841 is designed for low voltage (1.65V to 3.6V) VCC applications with I/O compatibility up to 3.6V.

The 74ALVC16841 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
