74ALVC16839

 Compatible with PC100 and PC133 DIMM module specifications
1.65V to 3.6V V_CC supply operation
 3.6V tolerant inputs and outputs
 tPD (CLK to O_n)
        3.7 ns max for 3.0V to 3.6V _VCC
        4.9 ns max for 2.3V to 2.7V V_CC
        8.8 ns max for 1.65V to 1.95V V_CC
 Power-off high impedance inputs and outputs
 Supports live insertion and withdrawal (Note 1)
Uses patented noise/EMI reduction circuitry
 Latchup conforms to JEDEC JED78
 ESD performance:
        Human body model > 2000V
        Machine model > 200V

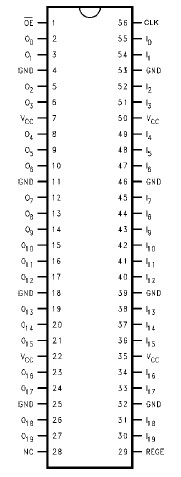

The 74ALVC16839 contains twenty non-inverting selectable buffered or registered paths. The device can be configured to operate in a registered, or flow through buffer mode by utilizing the register enable (REGE) and Clock (CLK) signals. The device operates in a 20-bit word wide mode. All outputs can be placed into 3-STATE through use of the OE pin. These devices are ideally suited for buffered or registered 168 pin and 200 pin SDRAM DIMM memory modules.

The 74ALVC16839 is designed for low voltage (1.65V to 3.6V) V_CC applications with I/O compatibility up to 3.6V.

The 74ALVC16839 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
