Features:

• Wide supply voltage range of 1.2 V to 3.6 V
• Complies with JEDEC standard no. 8-1A.
• CMOS low power consumption
• Direct interface with TTL levels
• Current drive ± 24 mA at 3.0 V
• MULTIBYTETM flow-through standard pin-out architecture
• Low inductance multiple VCC and GND pins for minimum noise
  and ground bounce
• Output drive capability 50 W transmission lines @ 85
• Input diodes to accommodate strong drivers


Pinout

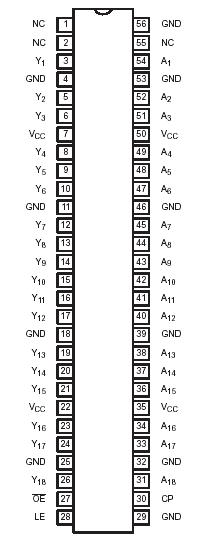

Connection Diagram


Specifications

SYMBOL               PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   0.5 to +4.6 V
IIK DC input diode current VI <0 50 mA
VI DC input voltage For control pins1 0.5 to +4.6 V
For data inputs1 0.5 to VCC +0.5
IOK DC output diode current VO >VCC or VO <0 ±50 mA
VO DC output voltage Note 1 0.5 to VCC +0.5 V
IO DC output source or sink current VO = 0 to VCC ±50 mA
IGND, ICC DC VCC or GND current   ±100 mA
Tstg Storage temperature range   65 to +150
PTOT Power dissipation per package
plastic thin-medium-shrink (TSSOP)		 For temperature range: 40 to +125
above +55°C derate linearly with 8 mW/K		 600 mW



Description

The 74ALVC16835A is a 18bit registered driver. Data flow is controlled by active low output enable (OE), active low latch enable (LE) and clock inputs (CP).

When LE of the 74ALVC16835A is LOW, the A to Y data flow is transparent. When LE is HIGH and CP is held at LOW or HIGH, the data is latched; on the LOW to HIGH transient of CP the A-data is stored in the latch/flip-flop.

When OE is LOW the outputs are active. When OE is HIGH, the outputs go to the high impedance OFFstate. Operation of the OE input does not affect the state of the latch/flip-flop.

To ensure the high-impedance state of the 74ALVC16835A during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
