74ALVC16835

Features: Compatible with PC100 DIMM module specifications1.65V to 3.6V VCC supply operation3.6V tolerant inputs and outputstPD (CLK to On) 4.5 ns max for 3.0V to 3.6V VCC 5.5 ns max for 2.3V to 2.7V VCC 9.2 ns max for 1.65V to 1.95V VCCPower-off high impedance inputs and outputsSupports live inse...

product image

74ALVC16835 Picture
See larger image
SeekIC No. : 004249380 Detail

74ALVC16835: Features: Compatible with PC100 DIMM module specifications1.65V to 3.6V VCC supply operation3.6V tolerant inputs and outputstPD (CLK to On) 4.5 ns max for 3.0V to 3.6V VCC 5.5 ns max for 2.3V to 2.7...

74ALVC16835 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ALVC16835
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Compatible with PC100 DIMM module specifications
1.65V to 3.6V VCC supply operation
3.6V tolerant inputs and outputs
tPD (CLK to On)
    4.5 ns max for 3.0V to 3.6V VCC
    5.5 ns max for 2.3V to 2.7V VCC
    9.2 ns max for 1.65V to 1.95V VCC
Power-off high impedance inputs and outputs
Supports live insertion/withdrawal (Note 1)
Latchup conforms to JEDEC JED78
ESD performance:
    Human body model > 2000V
    Machine model >200V


Pinout

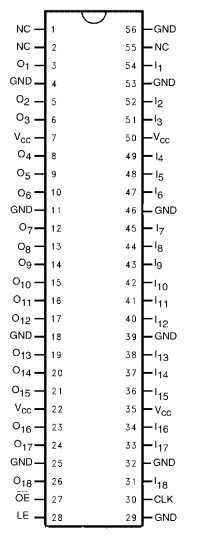

Connection Diagram


Specifications

Supply Voltage (VCC) .........................−0.5V to +4.6V
DC Input Voltage (VI) ...........................−0.5V to 4.6V
Output Voltage (VO) (Note 5)......−0.5V to VCC +0.5V
DC Input Diode Current (IIK)
    VI < 0V .......................................................−50 mA
DC Output Diode Current (IOK)
    VO < 0V ......................................................−50 mA
DC Output Source/Sink Current
    (IOH/IOL) ....................................................±50 mA
DC VCC or GND Current per
Supply Pin (ICC or GND)................................ ±100 mA
Storage Temperature Range (TSTG).−65°C to +150°C
Power Supply
    Operating ..........................................1.65V to 3.6V
Input Voltage (VI).........................................0V to VCC
Output Voltage (VO)......................................0V to VCC
Free Air Operating Temperature (TA). −40°C to +85°C
Minimum Input Edge Rate (∆t/∆V)
    VIN = 0.8V to 2.0V, VCC = 3.0V.................... 10 ns/V
Note 4: The Absolute Maximum Ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The parametric values defined in the Electrical Characteristics tables are not guaranteed at the Absolute Maximum Ratings. The "Recommended Operating Conditions" table will define the conditions for actual device operation.
Note 5: IO Absolute Maximum Rating must be observed, limited to 4.6V.
Note 6: Floating or unused control inputs must be held HIGH or LOW.


Description

The 74ALVC16835 low voltage 18-bit universal bus driver combines D-type latches and D-type flip-flops to allow data flow in transparent, latched and clocked modes.

Data flow of the 74ALVC16835 is controlled by output-enable (OE), latch-enable (LE), and clock (CLK) inputs. The device operates in Transparent Mode when LE is held HIGH. The device operates in clocked mode when LE is LOW and CLK is toggled. Data transfers from the Inputs (In) to Ouputs (On) on a Positive Edge Transition of the Clock. When OE is LOW, the output data is enabled. When OE is HIGH the output port is in a high impedance state.

The 74ALVC16835 is designed for low voltage (1.65V to 3.6V) VCC applications with I/O capability up to 3.6V.

The 74ALVC16835 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
