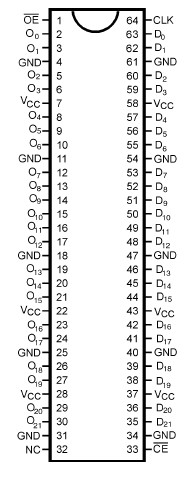

74ALVC16722

Supply Voltage (V_CC)                            -0.5V to +4.6V
DC Input Voltage (V_I)                              -0.5V to 4.6V
Output Voltage (V_O) (Note 2)         -0.5V to V_CC +0.5V
DC Input Diode Current (I_IK)
    V_I < 0V                                                        -50 mA
DC Output Diode Current (I_OK)
    V_O < 0V                                                       -50 mA
DC Output Source/Sink Current
    (IOH/IOL)                                                     ±50 mA
DC VCC or GND Current per
Supply Pin (I_CC or GND)                                 ±100 mA
Storage Temperature Range (TSTG) -65°C to +150°C

Note 1: The Absolute Maximum Ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The parametric values defined in the Electrical Characteristics tables are not guaranteed at the Absolute Maximum Ratings. The "Recommended Operating Conditions" table will define the conditions for actual device operation.
Note 2: IO Absolute Maximum Rating must be observed.

The 74ALVC16722 low voltage 22-bit register contains twenty-two non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus oriented applications. The design has been optimized for use with JEDEC compliant 200 pin DIMM modules.

The 74ALVC16722 is designed for low voltage (1.65V to 3.6V) V_CC applications with I/O capability up to 3.6V.

The 74ALVC16722 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
