74ALVC16374

Features:

    1.65V - 3.6V V_CC supply operation
    3.6V tolerant inputs and outputs
     t_PD
        3.5 ns max for 3.0V to 3.6V V_CC
        4.4 ns max for 2.3V to 2.7V V_CC
        7.8 ns max for 1.65V to 1.95V V_CC
    Power-off high impedance inputs and outputs
    Supports live insertion and withdrawal (Note 1)
    Uses patented noise/EMI reduction circuitry
    Latchup conforms to JEDEC JED78
    ESD performance:
        Human body model2000V
        Machine model200V
    Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA)

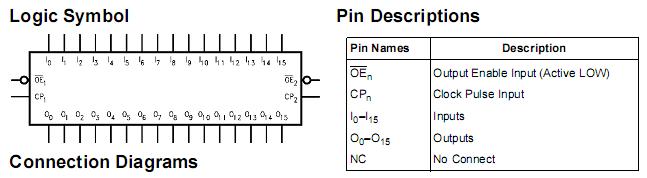

Pinout




Specifications

Supply Voltage (V_CC )                              -0.5V to 4.6V
DC Input Voltage (V_I)                              -0.5V to 4.6V
Output Voltage (V_O) (Note 5)            -0.5V to V_CC0.5V
DC Input Diode Current (I_IK)
  V_I<0V                                                              -50 mA
DC Output Diode Current (I_OK)
 V_O<0V                                                              -50 mA
DC Output Source/Sink Current
(I_OH/I_OL)                                                           ±50 mA
DC V_CC or GND Current per
Supply Pin (I_CC or GND)                                  ±100 mA
Storage Temperature Range (T_STG)     -65 to + 150












Description

      The 74ALVC16374 contains sixteen non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock(CP) and output enable (OE) are common to each byte and can be shorted together for full 16-bit operation. The 74ALVC16374 is designed for low voltage (1.65V to 3.6V) V_CC applications with I/O compatibility up to 3.6V. The 74ALVC16374 is fabricated with an advanced CMOS technology to achieve high speed operation while maintain-ing low CMOS power dissipation.
