74ALVC16334A

Features:

*Wide supply voltage range of 1.2 V to 3.6 V
*Complies with JEDEC standard no. 8-1A.
*CMOS low power consumption
*Direct interface with TTL levels
*Current drive ± 24 mA at 3.0 V
*MULTIBYTE^TM  flow-through standard pin-out architecture
*Low inductance multiple VCC and GND pins for minimum noise and ground bounce
*Output drive capability 50 transmission lines @ 85°C
*Input diodes to accommodate strong drivers

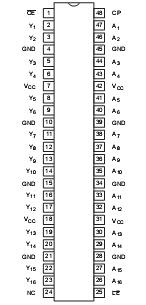

Pinout




Description

The 74ALVC16334A is a 16bit universal bus driver. Data flow is controlled by active low output enable (OE), active low latch enabl (LE) and clock inputs (CP).

When LE is LOW, the A to Y data flow is transparent. When LE is HIGH and CP of the 74ALVC16334A is held at LOW or HIGH, the data is latched; on the LOW to HIGH transient of CP the A-data is stored in the latch/flip-flop.
