Features: · Bidirectional interface between busses ranging from 1.65V to 3.6V· Supports Live Insertion and Withdrawal (Note 1)· Uses patented Quiet Series noise/EMI reduction circuitry· Functionally compatible with 74 series 16245· Latchup conforms to JEDEC JED78· ESD performance: Human Bo...
74ALVC163245: Features: · Bidirectional interface between busses ranging from 1.65V to 3.6V· Supports Live Insertion and Withdrawal (Note 1)· Uses patented Quiet Series noise/EMI reduction circuitry· Func...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: • Octal bus interface• 3-State buffer outputs sink 24mA and source 15mA̶...
Features: Octal bus interface3-State buffer outputs sink 24mA and source 15mAThe -1 version sinks ...
The 74ALVC163245 is a dual supply, 16-bit translating transceiver that is designed for 2 way asynchronous communication between busses at different supply voltages by providing true signal translation. The supply rails consist of VCCA, which is a higher potential rail operating at 2.3V to 3.6V and VCCB, which is the lower potential rail operating at 1.65V to 2.7V. (VCCB must be less than or equal to VCCA for proper device operation). This dual supply design allows for translation from 1.8V to 2.5V busses to busses at a higher potential, up to 3.3V.

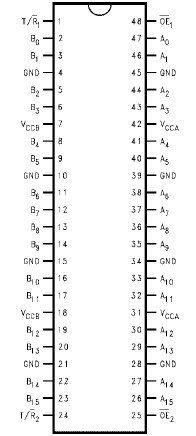

The Transmit/Receive (T/R) input of the 74ALVC163245 determines the direction of data flow. Transmit (active-HIGH) enables data from A Ports to B Ports; Receive (active-LOW) enables data from B Ports to A Ports. The Output Enable (OE) input, when HIGH, disables both A and B Ports by placing them in a High-Z condition. The A Port interfaces with the higher voltage bus (2.7V to 3.3V); The B Port interfaces with the lower voltage bus (1.8V to 2.5V). Also the ALVC163245 is designed so that the control pins (T/Rn, OEn) are supplied by VCCB.
The 74ALVC163245 is suitable for mixed voltage applications such as notebook computers using a 1.8V CPU and 3.3V peripheral components. It is fabricated with an Advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
