Features: Wide supply voltage range of 1.2 V to 3.6 V Complies with JEDEC standard no. 8-1A. CMOS low power consumption Direct interface with TTL levels Current drive ±12 mA at 3.0 V MULTIBYTE TMflow-through standard pin-out architecture Low inductance multiple VCC and GND pins for minimum noisea...
74ALVC162836A: Features: Wide supply voltage range of 1.2 V to 3.6 V Complies with JEDEC standard no. 8-1A. CMOS low power consumption Direct interface with TTL levels Current drive ±12 mA at 3.0 V MULTIBYTE TMfl...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $2 - 2.02 / Piece
Buffers & Line Drivers 16-Bit Buffer/Driver With 3-State Outputs

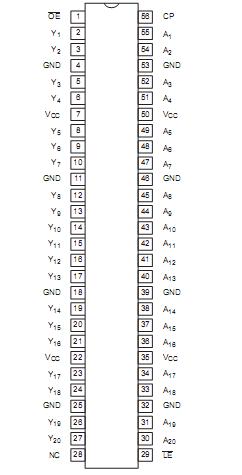

The 74ALVC162836A is an 20-bit universal bus driver. Data flow is controlled by output enable (OE ), latch enable (LE ) and clock inputs(CP).
When LE of the 74ALVC162836A is HIGH, the A to Y data flow is transparent. When LE is HIGH and CP is held at LOW or HIGH, the data is latched; on the LOW to HIGH transient of CP the A-data is stored in the latch/flip-flop.
The 74ALVC162836A is designed with 30 _series resistors in both HIGH or LOW output stages.
When OE of the 74ALVC162836A is LOW the outputs are active. When OE is HIGH, the outputs go to the high impedance OFF-state. Operation of the OE input does not affect the state of the latch/flip -flop.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
