Features:

*Wide supply voltage range of 1.2 V to 3.6 V
*Complies with JEDEC standard no. 8-1A.
*CMOS low power consumption
*Direct interface with TTL levels
*Current drive ± 12 mA at 3.0 V
*MULTIBYTETM  flow-through standard pin-out architecture
*Low inductance multiple VCC and GND pins for minimum noise
  and ground bounce
*Output drive capability 50 transmission lines @ 85°C
*Integrated 30   termination resistors
*Diode clamps to VCC and GND on all inputs
*Input diodes to accommodate strong drivers

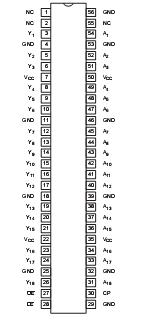

Pinout

  Connection Diagram


Specifications

SYMBOL
PARAMETER CONDITIONS
RATING
UNIT
VCC
DC supply voltage
0.5 to +4.6
V
IIK
DC input diode current
VI 0
50
mA
VI
DC input voltage
For all inputs1
0.5 to +4.6
V
IOK
DC output diode current
VO VCC or VO 0
±50
mA
VO
DC output voltage
Note 1
0.5to VCC+0.5
V
IO
DC output source or sink current
VO = 0 to VCC

±50
mA
IGND,ICC
DC VCC or GND current
±100
mA
Tstg
Storage temperature range
65 to +150

°C
PTOT
Power dissipation per package
plastic medium-shrink (SSOP)
plastic thin-medium-shrink(TSSOP)

For temperature range: 40 to +125
bove +55 derate linearly with 11.3 mW/K
above +55 derate linearly with 8 mW/K

850
600
mW



Description

The 74ALVC162834A is an 18-bit registered driver. Data flow is ontrolled by active low controlled enable (OE ), active low latch enable(LE ) and clock inputs (CP).

When LE of the 74ALVC162834A is LOW, the A to Y data flow is transparent. WhenLE  is HIGH and CP is held at LOW or HIGH, the data is latched; on the LOW to HIGH transient of CP the A-data is stored in the latch/flip-flop.

The 74ALVC162834A is designed with 30  _series resistors in both HIGH or LOW output stages.

When OE of the 74ALVC162834A is LOW the outputs are active. When OE  is HIGH, the outputs go to the high impedance OFF-state. Operation of the OE input does not affect the state of the latch/flip -flop.

To ensure the high-impedance state during power up or power down,OE of the 74ALVC162834A should be tied to Vccthrough a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
