74ALVC162373

Features: ` 1.65V to 3.6V VCC supply operation` 3.6V tolerant inputs and outputs` 26 series resistors in outputs` tPD (In to On) 3.8 ns max for 3.0V to 3.6V VCC 5.0 ns max for 2.3V to 2.7V VCC 9.0 ns max for 1.65V to 1.95V VCC` Power-off high impedance inputs and outputs` Support live insertion an...

product image

74ALVC162373 Picture
See larger image
SeekIC No. : 004249347 Detail

74ALVC162373: Features: ` 1.65V to 3.6V VCC supply operation` 3.6V tolerant inputs and outputs` 26 series resistors in outputs` tPD (In to On) 3.8 ns max for 3.0V to 3.6V VCC 5.0 ns max for 2.3V to 2.7V VCC 9.0 n...

74ALVC162373 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ALVC162373
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 1.65V to 3.6V VCC supply operation
` 3.6V tolerant inputs and outputs
` 26 series resistors in outputs
` tPD (In to On)
    3.8 ns max for 3.0V to 3.6V VCC
    5.0 ns max for 2.3V to 2.7V VCC
    9.0 ns max for 1.65V to 1.95V VCC
` Power-off high impedance inputs and outputs
` Support live insertion and withdrawal (Note 1)
` Uses patented noise/EMI reduction circuitry
` Latchup conforms to JEDEC JED78
` ESD performance:
    Human body model > 2000V
    Machine model > 200V
Note 1: To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pull-up resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.


Pinout

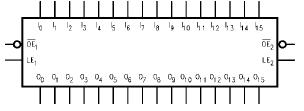

Connection Diagram


Specifications

Supply Voltage (VCC) . . . . . . . . . . . . . . . . . . −0.5V to +4.6V
DC Input Voltage (VI). . . . . . . . . . . . . . . . . .    −0.5V to 4.6V
Output Voltage (VO) (Note 3). . . . . . . .  −0.5V to VCC +0.5V
DC Input Diode Current (IIK)
    VI < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −50 mA
DC Output Diode Current (IOK)
    VO < 0V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−50 mA
DC Output Source/Sink Current
    (IOH/IOL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
DC VCC or GND Current per
Supply Pin (ICC or GND) ±100 mA
Storage Temperature Range (TSTG) . . . .−65°C to +150°C


Description

The 74ALVC162373 contains sixteen non-inverting latches with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. The flip-flops appear to be transparent to the data when the Latch enable (LE) is HIGH. When LE is LOW, the data that meets the setup time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the outputs are in a high impedance state.

The 74ALVC162373 is also designed with 26 resistors in the outputs. This design reduces line noise in applications such as memory address drivers, clock drivers and bus transceivers/transmitters.

The 74ALVC162373 is designed for low voltage (1.65V to 3.6V) VCC applications with I/O compatibility up to 3.6V.

The 74ALVC162373 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.
