74ALS241A1

Features:

• Octal bus interface
• 3-State buffer outputs sink 24mA and source 15mA
• The -1 version sinks 48 mA


Pinout




Specifications

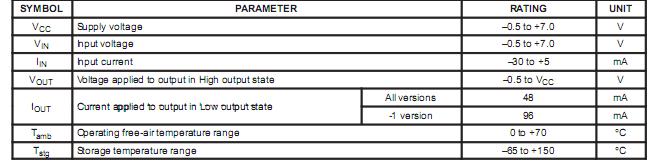

(Operation beyond the limit set forth in this table may impair the useful life of the device. Unless otherwise noted these limits are over the operating free air temperature range.)

Description

The 74ALS241A1 is an octal buffer that is ideal for driving bus lines or buffer memory address registers. The outputs are all capable of sinking 24mA and sourcing up to 15mA, producing very good capacitive drive characteristics. The device features two output enables, OEa and OEb, each controlling four of the 3-State outputs.
The 74ALS241A1 sinks 48mA IOL if the VCC is limited to 5.0V ±0.25V.
