Product Details

Description



Features:

• ESD protection:
    HBM EIA/JESD22-A114-A exceeds 2000 V
    MM EIA/JESD22-A115-A exceeds 200 V
    CDM EIA/JESD22-C101 exceeds 1000 V
• Balanced propagation delays
• All inputs have Schmitt-trigger actions
• Non-inverting data path
• Inputs accept voltages higher than VCC
• For AHC only: operates with CMOS input levels
• For AHCT only: operates with TTL input levels
• Specified from −40 to +85 °C and −40 to +125 °C.



Pinout

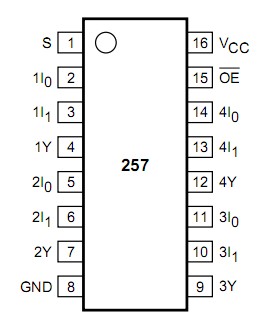

  Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCC DC supply voltage   −0.5 +7.0 V
VI input voltage   −0.5 +7.0 V
IIK DC input diode current VI < −0.5 V; note 1 −20 mA
IOK DC output clamping diode current VO < −0.5 V or VO >VCC + 0.5 V; note 1 ±20 mA
IO DC output sink current −0.5V<VO <VCC + 0.5 V ±25 mA
ICC;IGND DC VCC or GND current   ±75 mA
Tstg storage temperature   −65 +150 °C
PD power dissipation per package for temperature range: −40 to +125 °C; note 2 500 mW
Notes
1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
2. For SO packages: above 70 °C the value of PD derates linearly with 8 mW/K. For TSSOP packages: above 60 °C the value of PD derates linearly with 5.5 mW/K.



Description

The 74AHCT257 are high-speed Si-gate CMOS devices and are pin compatible with Low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard No. 7A.

The 74AHCT257 has four identical 2-input multiplexers with 3-state outputs, which select 4 bits of data from two sources and are controlled by a common data select input (S).

The data inputs of the 74AHCT257 from source 0 (1I0 to 4I0) are selected when input S is LOW and the data inputs from source 1 (1I1 to 4I1) are selected when S is HIGH. Data appears at the outputs (1Y to 4Y) in true (non-inverting) form from the selected inputs.

The 74AHCT257 is the logic implementation of a 4-pole 2-position switch, where the position of the switch is determined by the logic levels applied to S. The outputs are forced to a high impedance OFF-state when OE is HIGH.

If OE is LOW then the logic equations for the outputs of the 74AHCT257 are:

1Y = 1I1 * S+1I0 * S;

2Y = 2I1 * S+2I0 * S;

3Y = 3I1 * S+3I0 * S;

4Y = 4I1 * S+4I0 * S.

The '257' is identical to the '258' but has non-inverting (true) outputs.
