Features:

Utilizes Fairchild FACT Quiet Series technology
Guaranteed simultaneous switching noise level anddynamic threshold performance
Guaranteed pin-to-pin output skew
Separate control logic for each byte
Outputs source/sink 24 mA
Additional specs for multiple output switching
Output loading specs for both 50 pF and 250 pF loads


Pinout

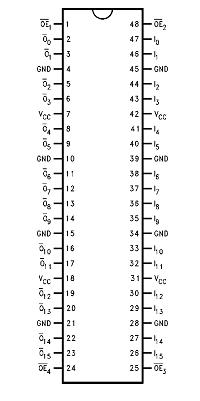

Connection Diagram


Specifications

Supply Voltage (VCC)                -0.5V to +7.0V
DC Input Diode Current (IIK)
VI = - 0.5V                                           -20 mA
VI = VCC +0.5V                                    +20 mA
DC Output Diode Current (IOK)
VO = - 0.5V                                            -20 mA
VO= VCC + 0.5V                                    +20 mA
DC Output Voltage (VO)     - 0.5V to VCC  +0.5V
DC Output Source/Sink Current (IO)     ±50 mA
DC VCC or Ground Current
per Output Pin                                     ± 50 mA
Storage Temperature                 -65to +150




Description

The 74ACTQ16540 contains sixteen inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus-oriented transmitter/receiver. The device is byte controlled. Each byte has sep arate 3-STATE control inputs which can be shortedtogether for full 16-bit operation.
The 74ACTQ16540 utilizes Fairchild Quiet Series(TM) technol-ogy to guarantee quiet output switching and improved dynamic threshold performance. FACT Quiet Series(TM) fea-tures GTO(TM) output control for superior performance.
