74ACTQ16373

Features: ·Utilizes Fairchild FACT Quiet Series technology·Guaranteed simultaneous switching noise level and dynamic threshold performance·Guaranteed pin-to-pin output skew·Separate control logic for each byte·16-bit version of the ACTQ373·Outputs source/sink 24 mA·Additional specs for Multiple Ou...

product image

74ACTQ16373 Picture
See larger image
SeekIC No. : 004249109 Detail

74ACTQ16373: Features: ·Utilizes Fairchild FACT Quiet Series technology·Guaranteed simultaneous switching noise level and dynamic threshold performance·Guaranteed pin-to-pin output skew·Separate control logic fo...

74ACTQ16373 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ACTQ16373
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Utilizes Fairchild FACT Quiet Series technology
·Guaranteed simultaneous switching noise level and dynamic threshold performance
·Guaranteed pin-to-pin output skew
·Separate control logic for each byte
·16-bit version of the ACTQ373
·Outputs source/sink 24 mA
·Additional specs for Multiple Output Switching
·Output Loading specs for both 50 pF and 250 pF loads


Pinout

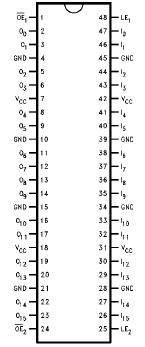

Connection Diagram


Specifications

Supply Voltage (VCC).  .  . . .   -0.5V to +7.0V
DC Input Diode Current (IIK)
  VI = -0.5V.  .  .  .  .  .  .  .. . . . . .. . .    -20 mA
  VI = VCC + 0.5V .  .  .  .  .  .  .. . . . . .+20 mA
DC Output Diode Current (IOK)
  VO = -0.5V.  .  .  .  .  .  .  .  . . . . . . .. . -20 mA
  VO = VCC + 0.5V.  .  .  .  .  .  . . . . . .. +20 mA
DC Output Voltage (VO) . -0.5V to VCC + 0.5V
DC Output Source/Sink Current (IO) .  +50 mA
DC VCC or Ground Current . . . . . . .. . .+50 mA
  per Output Pin
Junction Temperature . . . . . . . .. .. . .  +140°C
Storage Temperature . . . .. . -65°C to+150°C




Description

The 74ACTQ16373 contains sixteen non-inverting latches with 3-STATE outputs and is intended for bus oriented applications. The 74ACTQ16373 is byte controlled. The flip-flops appear transparent to the data when the Latch Enable (LE) is HIGH. When LE is low, the data that meets the setup time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the outputs are in high Z state. The ACTQ16373 utilizes Fairchild's Quiet Series technology to guarantee quiet output switching and improved dynamic threshold performance. FACT Quiet SeriesTM features GTOTM output control for superior performance.
