Product Details

Description



Features:

Utilizes Fairchild FACT Quiet Series technology
Guaranteed simultaneous switching noise level and dynamic threshold performance
Guaranteed pin-to-pin output skew
Bidirectional non-inverting buffers
Separate control logic for each byte
16-bit version of the ACTQ245
Outputs source/sink 24 mA
Additional specs for multiple output switching
Output loading specs for both 50 pF and 250 pF loads


Pinout

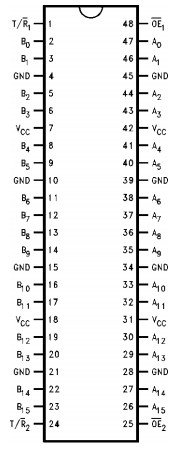

Connection Diagram


Specifications

Supply Voltage (VCC) ......................... -0.5V to + 7.0V
DC Input Diode Current (IIK)
    VI = 0.5V .....................................................-20 mA
    VI = VCC + 0.5V ..........................................+20 mA
DC Output Diode Current (IOK)
    VO = 0.5V ....................................................-20 mA
    VO = VCC +0.5V ..........................................+20 mA
DC Output Voltage (VO)................ -0.5V to VCC+0.5V
DC Output Source
    or Sink Current (IO) ....................................±50 mA
DC VCC or Ground Current
    per Output Pin (ICC or IGND) .....................± 50 mA
Storage Temperature(TSTG)............ -65oC to +150oC
Junction Temperature (TJ)
    PDIP............................................................ 140oC
Supply Voltage (VCC)..............................4.5V to 5.5V
Input Voltage (VI).......................................0V to VCC
Output Voltage (VO)....................................0V to VCC
Operating Temperature (TA) .............-40oC to +85oC
Minimum Input Edge Rate (V/t)........... 125 mV/ns
    ACT Devices
    VIN from 30% to 70% of VCC
    VCC @ 3.3V, 4.5V, 5.5V
Note 1: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power supply, temperature, and output/input loading variables. Fairchild does not recommend operation of FACT™ circuits outside databook specifications.


Description

The 74ACTQ16245 contains sixteen non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. Each has separate control inputs which can be shorted together for full 16-bit operation. The T/R inputs of the 74ACTQ16245 determine the direction of data flow through the device. The OE inputs disable both the A and B ports by placing them in a high impedance state.

The 74ACTQ16245 utilizes Fairchild Quiet Series™ technology to guarantee quiet output switching and improved dynamic threshold performance. FACT Quiet Series™ features GTO™ output control for superior performance.
