74ACTQ16244MTD

Polarity : Non-Inverting
Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT
Supply Voltage - Max : 5.5 V
Supply Voltage - Min : 4.5 V
Number of Output Lines : 3
Packaging : Tube
Number of Input Lines : 16
Package / Case : TSSOP-48


Features:

Utilizes Fairchild's FACT Quiet Series technology
Guaranteed simultaneous switching noise level and dynamic threshold performance
Guaranteed pin-to-pin output skew
Separate control logic for each byte and nibble
16-bit version of the ACTQ244
Outputs source/sink 24 mA
Additional specs for multiple output switching
Output loading specs for both 50 pF and 250 pF loads

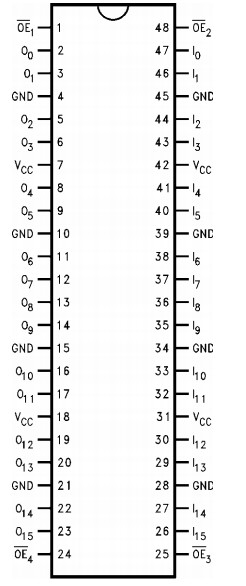

Pinout




Specifications

Supply Voltage (V_CC).................. −0.5V to +7.0V
DC Input Diode Current (I_IK)
    V_I = −0.5V ......................................... −20 mA
    V_I = VCC + 0.5V................................. +20 mA
DC Input Voltage (V_I) .........−0.5V to V_CC + 0.5V
DC Output Diode Current (I_OK)
    V_O = −0.5V........................................  −20 mA
    V_O = V_CC + 0.5V +20 mA
DC Output Voltage (V_O) ......−0.5V to V_CC + 0.5V
DC Output Source
    or Sink Current (I_O)............................ ±50 mA
DC V_CC or Ground Current
    per Output Pin (I_CC or I_GND)............... ±50 mA
Storage Temperature (T_STG)... −65°C to +150°C


Description

The 74ACTQ16244MTD contains sixteen non-inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus oriented transmitter/receiver. The device is nibble controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full 16-bit operation.

The 74ACTQ16244MTD utilizes Fairchild's Quiet Series technology to guarantee quiet output switching and improved dynamic threshold performance. FACT Quiet Series features GTO output control for superior performance.

Parameters:

Technical/Catalog Information	74ACTQ16244MTD
Vendor	Fairchild Optoelectronics Group
Category	Integrated Circuits (ICs)
Logic Type	Line Driver, Non-Inverting
Package / Case	48-TSSOP
Packaging	Tube
Mounting Type	Surface Mount
Number of Bits per Element	4
Number of Elements	4 - Quad
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	4.5 V ~ 5.5 V
Current - Output High, Low	24mA, 24mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	74ACTQ16244MTD 74ACTQ16244MTD
