74ACTQ16244

Features: *Utilizes Fairchild's FACT Quiet Series technolog*Guaranteed simultaneous switching noise level and dynamic threshold performance*Guaranteed pin-to-pin output skew*Separate control logic for each byte and nibble*16-bit version of the ACTQ244*Outputs source/sink 24 mA*Additional specs for...

product image

74ACTQ16244 Picture
See larger image
SeekIC No. : 004249107 Detail

74ACTQ16244: Features: *Utilizes Fairchild's FACT Quiet Series technolog*Guaranteed simultaneous switching noise level and dynamic threshold performance*Guaranteed pin-to-pin output skew*Separate control logic f...

74ACTQ16244 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ACTQ16244
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Utilizes Fairchild's FACT Quiet Series technolog
*Guaranteed simultaneous switching noise level and dynamic threshold performance
*Guaranteed pin-to-pin output skew
*Separate control logic for each byte and nibble
*16-bit version of the ACTQ244
*Outputs source/sink 24 mA
*Additional specs for multiple output switching
*Output loading specs for both 50pF and 250pF loads




Pinout

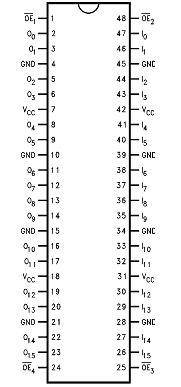

Connection Diagram


Specifications

Supply Voltage (VCC)                    -0.5V to +7.0V
DC Input Diode Current (IIK )
VI= - 0.5V                                                -20 mA
 VI= VCC+ 0.5V                                       +20 mA
DC Output Diode Current (IOK)
VI= - 0.5V                                                -20 mA
 VI= VCC+ 0.5V                                       +20 mA
DC Output Voltage (VO)       -0.5V to VCC + 0.5V
DC Output Source/Sink Current (IO)      ±50 mA
DC VCC or Ground Current
per Output Pin                                       ±50 mA
Junction Temperature                             +140
Storage Temperature                -65 to +150







Description

  The 74ACTQ16244 contains sixteen non-inverting buffers with 3-STATE outputs designed to be employed as a mem- ory and address driver, clock driver, or bus oriented trans-mitter/receiver. The device is nibble controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full 16-bit operation.

   The 74ACTQ16244 utilizes Fairchild's Quiet Series technol ogy to guarantee quiet output switching and improved dynamic threshold performance. FACT Quiet Series™ fea- tures GTO™ output control for superior performance.
