Features:

`Utilizes Fairchild's FACT Quiet Series technology
`Guaranteed simultaneous switching noise level and dynamic threshold performance
` Guaranteed pin-to-pin output skew
`Separate control logic for each byte
`16-bit version of the ACTQ240
` Outputs source/sink 24 mA
` Additional specs for multiple output switching
`Output loading specs for both 50 pF and 250 pF loads




Pinout

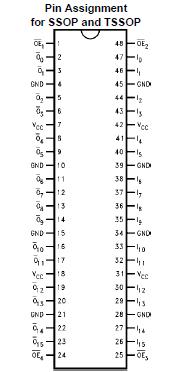

Connection Diagram


Specifications

Supply Voltage (VCC) . .  . .  -0.5V to +7.0V
DC Input Diode Current (IIK)
  VI = -0.5V . .  . . . .  . . . .  .  -20 mA
  VI = VCC + 0.5V . .  . . . .  . . .  +20 mA
DC Output Diode Current (IOK)
  VO = -0.5V  . .  . . . .  . . . .  . -20 mA
  VO = VCC + 0.5V . .  . . . .  . . .  +20 mA
DC Output Voltage (VO)  . -0.5V to VCC + 0.5V
DC Output Source/Sink Current (IO) . ± 50 mA
DC VCC or Ground Current
  per Output Pin  . . . . . . . .    ± 50 mA
Junction Temperature  . . . . .  .  . +140°C
Storage Temperature  . .  . -65°C to +150°C


Description

The 74ACTQ16240 contains sixteen inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus-oriented transmitter/ receiver. The device is nibble controlled. Each nibble has separate 3-STATE control inputs which can be shorted
together for full 16-bit operation.

The 74ACTQ16240 utilizes Fairchild's Quiet Seriesä technology to guarantee quiet output switching and improve dynamic threshold performance. FACT Quiet Seriesä features GTOä output control for superior performance.
