74ACT899QC

Bus Transceivers 9-Bit Latch Trans

product image

74ACT899QC Picture
SeekIC No. : 00414808 Detail

74ACT899QC: Bus Transceivers 9-Bit Latch Trans

floor Price/Ceiling Price

US $ 2.78~3.79 / Piece | Get Latest Price
Part Number:
74ACT899QC
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $3.79
  • $3.03
  • $2.92
  • $2.78
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Logic Type : CMOS Logic Family : ACT
Number of Channels per Chip : 8 Input Level : TTL
Output Level : CMOS Output Type : 3-State
High Level Output Current : - 24 mA Low Level Output Current : 24 mA
Propagation Delay Time : 11.5 ns Supply Voltage - Max : 5.5 V
Supply Voltage - Min : 4.5 V Maximum Operating Temperature : + 85 C
Package / Case : PLCC-28 Packaging : Tube

Description

Number of Channels per Chip : 8
Output Type : 3-State
Packaging : Tube
Logic Type : CMOS
Supply Voltage - Max : 5.5 V
Maximum Operating Temperature : + 85 C
High Level Output Current : - 24 mA
Low Level Output Current : 24 mA
Supply Voltage - Min : 4.5 V
Output Level : CMOS
Input Level : TTL
Logic Family : ACT
Package / Case : PLCC-28
Propagation Delay Time : 11.5 ns


Features:

Latchable transceiver with output sink of 24 mA
Option to select generate parity and check or "feed-through" data/parity in directions A-to-B or B-to-A
Independent latch enable for A-to-B and B-to-A directions
Select pin for ODD/EVEN parity
ERRA and ERRB output pins for parity checking
Ability to simultaneously generate and check parity
May be used in system applications in place of the 280
May be used in system applications in place of the 657 and 373 (no need to change T/R to check parity)



Pinout

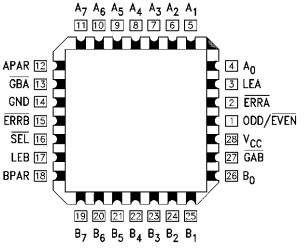

  Connection Diagram


Specifications

Supply Voltage (VCC).................. −0.5V to +7.0V
DC Input Diode Current (IIK)
    VI = −0.5V ......................................... −20 mA
    VI = VCC + 0.5V................................. +20 mA
DC Input Voltage (VI) .........−0.5V to VCC + 0.5V
DC Output Diode Current (IOK)
    VO = −0.5V........................................  −20 mA
    VO = VCC + 0.5V +20 mA
DC Output Voltage (VO) ......−0.5V to VCC + 0.5V
DC Output Source
    or Sink Current (IO)............................ ±50 mA
DC VCC or Ground Current
    per Output Pin (ICC or IGND)............... ±50 mA
Storage Temperature (TSTG)... −65°C to +150°C
DC Latch-Up Source or Sink Current .... ±300 mA

Junction Temperature (TJ)..........................140°C



Description

The 74ACT899QC is a 9-bit to 9-bit parity transceiver with transparent latches. The 74ACT899QC can operate as a feed-through transceiver or it can generate/check parity from the 8-bit data busses in either direction. The ACT899 features independent latch enables for the A-to-B direction and the B-to-A direction, a select pin for ODD/EVEN parity, and separate error signal output pins for checking parity.
