Features:

·HIGH SPEED: tPD = 4.8ns (TYP.) at VCC = 5V
·LOW POWER DISSIPATION: ICC = 8mA(MAX.) at TA=25°C
·COMPATIBLE WITH TTL OUTPUTS VIH = 2V (MIN.), VIL = 0.8V (MAX.)
·SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 24mA (MIN) at VCC = 4.5V
·BALANCED PROPAGATION DELAYS: tPLH @ tPHL
·OPERATING VOLTAGE RANGE: VCC (OPR) = 4.5V to 5.5V
·FUNCTION COMPATIBLE WITH SERIES 16373 AND 16245 (244)
·IMPROVED LATCH-UP IMMUNITY
·IMPROVED ESD IMMUNITY




Pinout

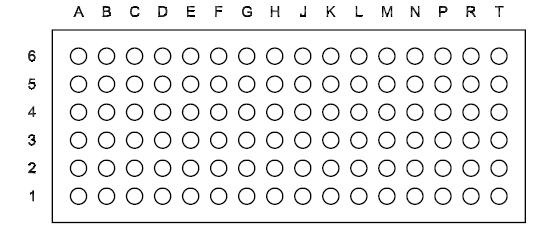

Connection Diagram


Specifications

SYMBOL PARAMETER Value UNIT
VCC Supply voltagee 0.5 to+ 7 V
VI DC Input Voltage -0.5 to VCC + 0.5 V
VO DC Output Voltage -0.5 to VCC + 0.5 V
IIK DC Input Diode Current +20 mA
IOK DC Output Diode Current +20 mA
IO DC Output Current +50 mA
ICC or IGND DC VCC or Ground Current +400 mA
Tstg Storage temperature range 65 to 150

TL		 Lead Temperature (10 sec) 300



Description

The 74ACT32701 is a low voltage CMOS 16-BIT D-TYPE LATCH and 16 BIT BUS TRANSCEIVER with 3-STATE output non inverting fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.

Both functions of the 74ACT32701 can be used as 16 bit or dual octal devices, so the 16 bit transceiver can be used ad 8 bit bus buffer plus 8 bit transceiver, or only 16 bit buffer in select direction.
