Product Details

Description



Features:

Bidirectional non-inverting buffers
Separate control logic for each byte
16-bit version of the ACT245
Outputs source/sink 24 mA
TTL-compatible inputs


Pinout

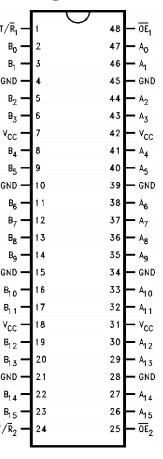

Connection Diagram


Specifications

Supply Voltage (VCC) ......................... -0.5V to + 7.0V
DC Input Diode Current (IIK)
    VI = 0.5V .....................................................-20 mA
    VI = VCC + 0.5V ..........................................+20 mA
DC Output Diode Current (IOK)
    VO = 0.5V ....................................................-20 mA
    VO = VCC +0.5V ..........................................+20 mA
DC Output Voltage (VO)................ -0.5V to VCC+0.5V
DC Output Source/Sink Current (IO) ..............±50 mA
DC VCC or Ground Current
    per Output Pin ..........................................± 50 mA
Storage Temperature..................... -65oC to +150oC
Supply Voltage (VCC) .............................4.5V to 5.5V
Input Voltage (VI).......................................0V to VCC
Output Voltage (VO)....................................0V to VCC
Operating Temperature (TA) .............-40oC to +85oC
Minimum Input Edge Rate (V/t)........... 125 mV/ns
    VIN from 0.8V to 2.0V
    VCC @ 4.5V, 5.5V
Note 1: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception to ensure that the system design is reliable over its power supply, temperature, and output/input loading variables. Fairchild does not recommend operation of FACT™ circuits outside databook specifications.


Description

The 74ACT16245 contains sixteen non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. Each has separate control inputs which can be shorted together for full 16-bit operation. The T/R inputs determine the direction of data flow through the device. The OE inputs disable both the A and B ports by placing them in a high impedance state.
