74AC11800

Features: • Suitable for Use in Applications Such as: Differential Line Drivers Complementary Input Circuits for Decoders and Code Converters• Flow-Through Architecture Optimizes PCB Layout• Center-Pin VCC and GND Pin Configurations Minimize High-Speed Switching Noise• EP...

product image

74AC11800 Picture
See larger image
SeekIC No. : 004248875 Detail

74AC11800: Features: • Suitable for Use in Applications Such as: Differential Line Drivers Complementary Input Circuits for Decoders and Code Converters• Flow-Through Architecture Optimizes PCB L...

74AC11800 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74AC11800
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Suitable for Use in Applications Such as:
   Differential Line Drivers
   Complementary Input Circuits for Decoders and Code Converters
• Flow-Through Architecture Optimizes PCB Layout
• Center-Pin VCC and GND Pin Configurations Minimize High-Speed Switching Noise
• EPICETM (Enhanced-Performance Implanted CMOS) 1-mm Process
• 500-A Typical Latch-Up Immunity at 125°C


Pinout

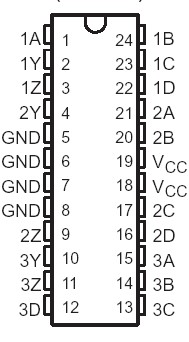

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . .  .0.5 V to 7 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .0.5 V to VCC + 0.5 V
Output voltage range, VO (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . ±50 mA
Continuous output current, IO (VO = 0 to VCC)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .±50 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . . . . . .±150 mA
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .65°C to 150°C


Description

The 74AC11800 is a triple 4-input AND/NAND gate. Elimination of decode spikes in symmetrical decoder and code-converter applications makes the device useful for applications such as a decoder or differential line driver.

The 74AC11800 is characterized for operation from 40°C to 85°C.
