74ABTH16825A

Features: • Multiple VCC and GND pins minimize switching noise• Live insertion/extraction permitted• 3-State output buffers• Power-up 3-State• 74ABTH16825A incorporates bus-hold data inputs which eliminate the need for external pull-up resistors to hold unused inputs&...

product image

74ABTH16825A Picture
See larger image
SeekIC No. : 004248809 Detail

74ABTH16825A: Features: • Multiple VCC and GND pins minimize switching noise• Live insertion/extraction permitted• 3-State output buffers• Power-up 3-State• 74ABTH16825A incorporates...

74ABTH16825A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ABTH16825A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Multiple VCC and GND pins minimize switching noise
• Live insertion/extraction permitted
• 3-State output buffers
• Power-up 3-State
• 74ABTH16825A incorporates bus-hold data inputs which
   eliminate the need for external pull-up resistors to hold unused
   inputs
• Output capability: +64mA/32mA
• Latch-up protection exceeds 500mA per Jedec Std 17
• ESD protection exceeds 2000V per MIL STD 883 Method 3015
   and 200V per Machine Model
• Bus-hold data inputs eliminate the need for external pull-up
   resistors to hold unused inputs


Pinout

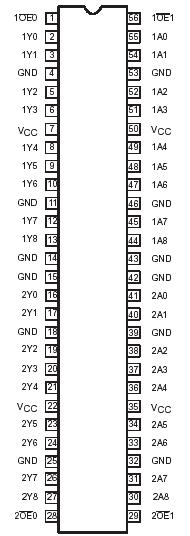

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   0.5 to +7.0 V
IIK DC input diode current VI < 0 18 mA
VI DC input voltage3   1.2 to +7.0 V
IOK DC output diode current VO < 0 50 mA
VOUT DC output voltage3 Output in Off or High state 0.5 to +5.5 V
IOUT DC output current Output in Low state 128 mA
Output in High state 64
Tstg Storage temperature range   65 to 150



Description

The 74ABTH16825A high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

The74ABT16825A 18-bit buffers provide high performance bus interface buffering for wide data/address paths or buses carrying parity. They have NOR Output Enables (nOE1, nOE2) for maximum control flexibility.

Two options are available, 74ABTH16825A which does not have the bus-hold feature and 74ABTH16825A which incorporates the bus-hold feature.
