74ABTH16652

Features:

• Independent registers for A and B buses
• Multiple VCC and GND pins minimize switching noise
• Power-up 3-State
• 74ABTH16652 incorporates bus-hold data inputs which eliminate the need for external pull-up resistors to hold unused inputs
• Power-up reset
• Live insertion/extraction permitted
• Multiplexed real-time and stored data
• Output capability: +64mA/32mA
• Latch-up protection exceeds 500mA per JEDEC Std 17
• ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model

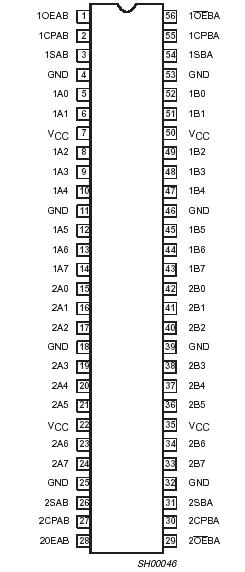

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to +7.0	V
IIK	DC input diode current	VI < 0	18	mA
VI	DC input voltage3		1.2 to +7.0	V
IOK	DC output diode current	VO < 0	50	mA
VOUT	DC output voltage3	output in Off or High state	0.5 to +5.5	V
IOUT	DC output current	output in Low state	128	mA
		Output in High state	-64	mA
Tstg	Storage temperature range		65 to 150	°C

Description

   The 74ABTH16652 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

   The 74ABTH16652 transceiver/register consists of two sets of bus transceiver circuits with 3-State outputs, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the input bus or the internal registers. Data on the A or B bus will be clocked into the registers as the appropriate clock pin goes HIGH. Output Enable (nOEAB, (nNEBA ) and Select (nSAB , nSBA ) pins are provided for bus management.

   Two options are available, 74ABT16652 which does not have the bus-hold feature and 74ABTH16652 which incorporates the bus-hold feature.
