Features:

•Combines 74ABT245 and 74ABT373 type functions in one device
•8-bit octal transceiver with D-type latch
•Back-to-back registers for storage
•Separate controls for data flow in each direction
•Output capability: +64mA/32mA
•Live insertion/extraction permitted
•Power-up 3-State
•Power-up reset
•Latch-up protection exceeds 500mA per Jedec Std 17
•ESD protection exceeds 2000 V per MIL STD 883 Method 3015
and 200 V per Machine Model

Pinout

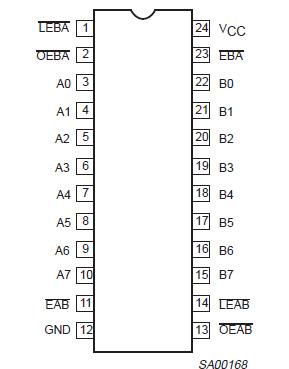

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
V_CC	DC supplyvoltage		0.5 to +7.0	V
I_IK	DC input diode current	VI < 0	18	mA
V_I	DC input voltage3		1.2 to +7.0	V
I_OK	DC output diode current	VO < 0	50	mA
V_OUT	DC output voltage3	output in Off orHighstate	0.5 to +5.5	V
I_OUT	DC output current	output in Low state	128	mA
T_stg	Storagetemperaturerange		65 to 150

Description

The 74ABT543A high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

The 74ABT543A Octal Registered Transceiver contains two sets of D-type latches for temporary storage of data flowing in either direction. Separate Latch Enable (LEAB, LEBA ) and Output Enable (OEAB, OEBA ) inputs are provided for each register to permit independent control of data transfer in either direction. The outputs are guaranteed to sink 64mA.
