74ABT374A

Features:

*8-bit positive edge triggered register
*3-State output buffers
*Output capability: +64mA/32mA
*Latch-up protection exceeds 500mA per Jedec Std 17
*ESD protection exceeds 2000 V per MIL STD 883 Method 3015
  and 200 V per Machine Model
*Power-up 3-State
*Power-up reset
*Live insertion/extraction permitted

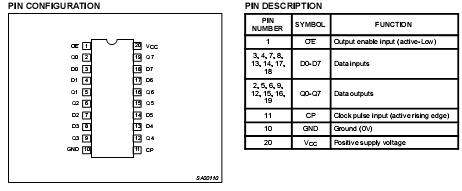

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to +7.0	V
IIK	DC input diode current	VI < 0	18	mA
VI	DC input voltage3		1.2 to +7.0	V
IOK	DC output current	VO < 0	50	mA
VOUT	DC output voltage3	output in Off or High state	0.5 to +5.5	V
IOUT	DC output diode current	output in Low state	128	mA
Tstg	Storage temperature range		65 to +150	°C

Description

The 74ABT374A high-performance BiCMOS device combines  low static and dynamic power dissipation with high speed and  high output drive.

The 74ABT374A is an 8-bit, edge triggered register coupled to eight 3-State output buffers. The two sections of the device are controlled independently by the clock (CP) and Output Enable (OE) control gates.
