74ABT241

Features:

 Non-inverting buffers
 Output sink capability of 64 mA, source capability of 32 mA
 Guaranteed latchup protection
 High impedance glitch free bus loading during entire power up and power down cycle
 Nondestructive hot insertion capability

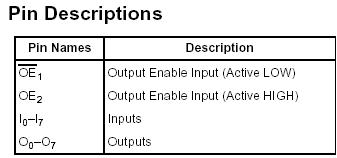

Pinout




Specifications

Storage Temperature                                     −65°C to +150°C
Ambient Temperature under Bias                   −55°C to +125°C
Junction Temperature under Bias                   −55°C to +150°C
V_CC Pin Potential to Ground Pin                         −0.5V to +7.0V
Input Voltage (Note 2)                                       −0.5V to +7.0V
Input Current (Note 2)                                −30 mA to +5.0 mA
Voltage Applied to Any Output
in the Disabled or
Power-Off State                                                  −0.5V to 5.5V
in the HIGH State                                                −0.5V to VCC
Current Applied to Output
in LOW State (Max)                           twice the rated I_OL (mA)
DC Latchup Source Current
(Over Comm Operating Range)                                −500 mA
Over Voltage Latchup (I/O)                                              10V



Description

   The 74ABT241 is an octal buffer and line driver with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus-oriented transmitter/ receiver.
