74ABT2240

Features:

•Octal bus interface
•3-State buffers
•Live insertion/extraction permitted
•Outputs include series resistance of 30Ω, making external termination resistors unnecessary
•Output capability: +12mA/32mA
•Latch-up protection exceeds 500mA per Jedec Std 17
•ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per Machine Model
•Power-up 3-State
•Same part as 74ABT240-1

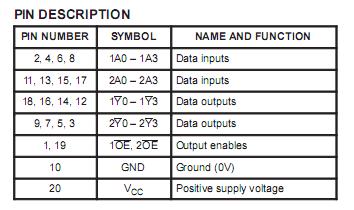

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to +7.0	V
IIK	DC input diode current	VI < 0	18	mA
VI	DC input voltage3		1.2 to +7.0	V
IOK	DC output diode current	VO < 0	50	mA
VOUT	DC output voltage3	output in Off or High state	0.5 to +5.5	V
IOUT	DC output current	output in Low state	128	mA
Tstg	Storage temperature range		65 to 150	°C

Description

   The 74ABT2240 high-performance BiCMOS device combines  low static and dynamic power dissipation with high speed.

    The 74ABT2240 device is an octal inverting buffer that is ideal for driving bus lines.  The device features two Output Enables (1OE ,2OE ), each controlling four of the 3-State outputs.

    The 74ABT2240 is designed with 30Ω  series resistance in both the High and Low states of the output. This design reduces line noise in applications such as memory address drivers, clock drivers and bus receivers/transmitters.

    The 74ABT2240 is the same as the 74ABT240-1. The part number has been changed to reflect industry standards.
