74ABT16646

Features:

 Independent registers for A and B buses
 Multiplexed real-time and stored data
 A and B output sink capability of 64 mA, source capability of 32 mA
 Guaranteed latchup protection
 High impedance glitch free bus loading during entire power up and power down cycle
 Nondestructive hot insertion capability

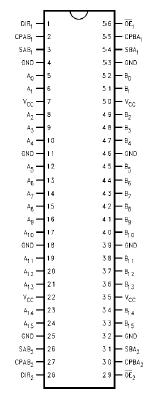

Pinout




Specifications

Storage Temperature                                               −65°C to +150°C
Ambient Temperature under Bias                             −55°C to +125°C
Junction Temperature under Bias                             −55°C to +150°C
V_CC Pin Potential to Ground Pin                                    −0.5V to +7.0V
Input Voltage (Note 3)                                                  −0.5V to +7.0V
Input Current (Note 3)                                            −30 mA to +5.0 mA
Voltage Applied to Any Output
in the Disable or
Power-Off State                                                             −0.5V to +5.5V
in the HIGH State                                                              −0.5V to V_CC
Current Applied to Output
in LOW State (Max)                                          twice the rated I_OL (mA)
DC Latchup Source Current                                                      −500 mA
Over Voltage Latchup (I/O)                                                              10V



Description
