74ABT16273

Features:

• 16-bit D-type edge triggered flip-flops
• Output capability: +64mA/32mA
• TTL input and output switching levels
• Live insertion/extraction permitted
• Power-up reset
• 74ABTH16273 incorporates bus-hold data inputs which eliminate the need for external pull-up resistors to hold unused inputs
• Latch-up protection exceeds 500mA per JEDEC Std 17
• ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model

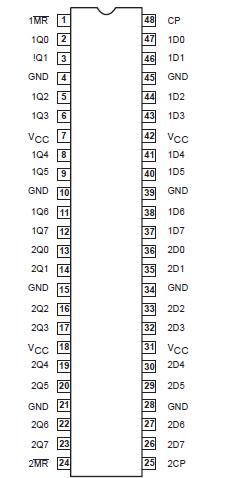

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to 7.0	V
IIK	DC input diode current	VI < 0	18	mA
VI	DC input voltage3		1.2 to +7.0	v
IOK	DC output diode current	VO < 0	50	mA
VOUT	DC output voltage3	Output in Off or High state	0.5 to +5.5	v
IOUT	DC output current	Output in Low state	128	mA
		Output in High state	64
Tstg	Storage temperature range		65 to +150	°C

Description

The 74ABT16273 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

This part is a 16-bit edge triggered D-type flip-flop with non-inverting high drive outputs. This device can be used as two 8-bit flip-flops or one 16-bit flip-flop. When the clock (CP) goes High, the data on the D inputs is stored and the Q outputs display the stored data.
