Product Details

Description



Features:

16-bit bus interface
Multiple VCC  and GND pins minimize switching noise
Power-up 3-State
3-State buffers
Output capability: +12 mA/-32mA
Live insertion/extraction permitted
Latch-up protection exceeds 500mA per JEDEC Std 17
ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per Machine Model
Same part as 74ABT162244-1
74ABTH162244 incorporates bus hold data inputs which eliminate the need for external pull-Cup resistors to hold unused inputs
Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs


Application

      Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.




Pinout

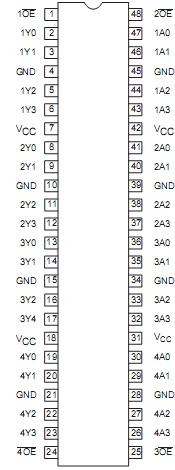

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   -0.5 to +4.6 V
IIK DC input diode current VI < 0 -50 mA
VI DC input voltage3   -0.5 to +7.0 V
IOK DC output diode current VO < 0 -50 mA
VOUT DC output voltage3 Output in Off or High state -0.5 to +7.0 V
IOUT DC output current Output in Low state 128 mA
Output in High state -64
Tstg Storage temperature range   -65 to +150 °C



Description

      The 74ABT162244 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed.

      The 74ABT162244 device is a 16-bit buffer that is ideal for driving bus lines. The device features four Output Enables (1OE , 2OE,3OE, 4OE), each controlling four of the 3-State outputs.

      The 74ABT162244 is designed with 30 series resistance in both the upper and lower output structures. This design reduces line noise in applications such as memory address drivers, clock drivers and bus receivers/transmitters.

      The 74ABT162244 is the same as the 74ABT16244-1. The part number has been changed to reflect industry standards.

      Two options are available, 74ABT162244 which does not have the bus hold feature and the 74ABTH162244 which incorporates the bus hold feature.
