Features:

•16K x 9-bit organization
•RAD-PAK® radiation-hardened against natural space radiation
• A total dose hardness:
   - > 100 krad (Si), depending upon space mission
• Excellent Single Event Effect
   - SELTH: > 100 MeV/mg/cm2
   - SEUTH: = 7 MeV/mg/cm2
   - SEU saturated cross section: 1.5E-5 cm2/bit
• Asynchronous Read/Write operation
• High speed CMOS epi technology
• Retransmit capability
• Propagation time (max access time):
   - 15 ns, 20 ns, 30 ns, 40 ns, 50 ns
• Status flag: empty, half-full, full
• Fully expandable in both word depth and width
• Bi-directional applications
• Low power
• Battery back-up operation
• TTL compatible
• Package: 28 pin RAD-PAK® flat package


Pinout

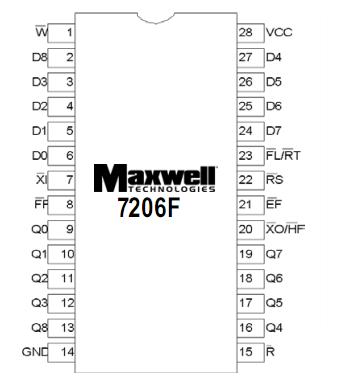

Connection Diagram


Specifications

PARAMETER
SYMBOL
MIN
MAX
UNITS
Positive Supply Voltage
VCC
-0.3
7.0
V
Input or Output Voltage
 VIN
GND -0.3
VCC +0.3
V
Storage Temperature Range
TS
-65
150
°C
Operating Temperature Range
TA
-55
125
°C



Description

Maxwell Technologies' 7206F high speed FIFO microcircuit features a greater than 100 krad (Si) total dose tolerance, depending upon space mission. The 7206F is organized such that the data is read in the same sequential order that it was written. Full and Empty flags are provided to prevent overflow and underflow. The expansion logic  allows unlimited expansion capability in work size and depth with no timing penalties. Twin address pointers automatically generate internal read and write addresses, and automatically increment with the write and read pin. The 7206F 9-bits wide data are used in data communications applications where a parity bit for error checking is necessary. The retransmit capability allows the read pointer to be reset to its initial position without affecting the write pointer.

Maxwell Technologies' patented RAD-PAK® packaging technology incorporates radiation shielding in the microcircuit package.  The 7206F eliminates the need for box shielding while providing the required radiation shielding for a lifetime in orbit or space mission.  In a GEO orbit, RAD-PAK provides greater than 100krad (Si) radiation dose tolerance. This product is available with screening up to Class S.
