SeekIC No. : 004170817 Detail

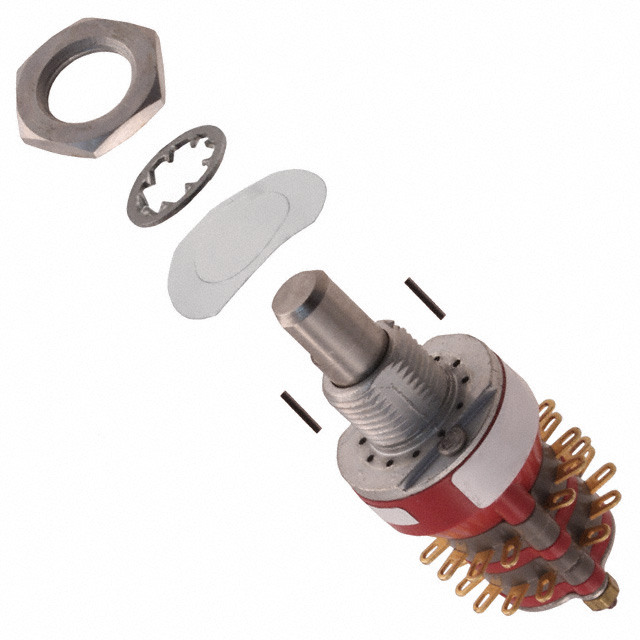

71B30-02-2-06S: SWITCH ROTARY 6POS 2 POLE

71B30-02-2-06S Data Sheet

US $ 14.34~14.34 / Piece | Get Latest Price

Part Number:: 71B30-02-2-06S
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1

Unit Price
$14.34

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

71B30-01-6-02S evaluate
US $14.21 - 14.21 / Piece

SWITCH ROTARY 6P-2 POS SNGL DECK
71B30-05A12N evaluate
US $23.13 - 23.13 / Piece

SWITCH ROTARY SP-12POS 5DECK
71B30-06-2-06N evaluate
US $28.93 - 28.93 / Piece

SWITCH ROTARY 6 DECK 2 POLE 6POS

Product Details

Quick Details

Series:	71	Manufacturer:	Grayhill Inc
Number of Positions:	6	Package / Case :	WQFN-42
Number of Decks:	2	Number of Poles per Deck:	2
Circuit per Deck:	DP6T	Contact Rating @ Voltage:	0.25A @ 28VDC
Actuator Type:	Flatted (6.35mm dia)	Mounting Type:	Panel Mount
Termination Style:	Solder Lug	Orientation:	Vertical

Description

Orientation: Vertical
Actuator Type: Flatted (6.35mm dia)
Number of Poles per Deck: 2
Mounting Type: Panel Mount
Termination Style: Solder Lug
Angle of Throw: 30°
Number of Positions: 6
Circuit per Deck: DP6T
Manufacturer: Grayhill Inc
Series: 71
Contact Rating @ Voltage: 0.25A @ 28VDC
Number of Decks: 2

Parameters:

Technical/Catalog Information	71B30-02-2-06S
Vendor	Grayhill Inc
Category	Switches
Actuator Type	Flatted (6.35mm dia)
Mounting Type	Panel Mount
Number of Positions	6
Number of Decks	2
Number of Poles per Deck	2
Angle of Throw	30°
Contact Rating @ Voltage	0.25A @ 28VDC
Orientation	Vertical
Termination Style	Solder Lug
Circuit per Deck	DP6T
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	71B30 02 2 06S 71B3002206S
