7109PD

BOARD LEVEL HEAT SINK

product image

7109PD Picture
See larger image
SeekIC No. : 004241862 Detail

7109PD: BOARD LEVEL HEAT SINK

7109PD Data Sheet

floor Price/Ceiling Price

US $ .54~.54 / Piece | Get Latest Price
Part Number:
7109PD
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 1~3000
  • Unit Price
  • $.54
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

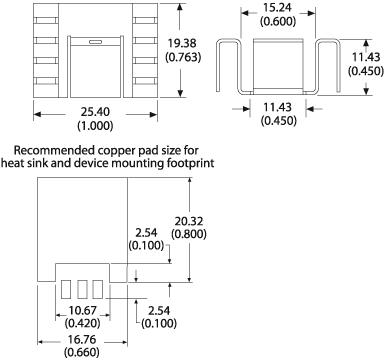

Connection Diagram


Specifications

Part # Description Finish Board Mounting
7109PD Surface mount heat sink for D2 Pak ( to-263)package semiconductors Pre-Tin Plated N/A



Description

Thermal Resistance 11.00

7109PD Thermal resistance value is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information7109PD
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodSMD Pad
Height0.45" (11.43mm)
MaterialCopper
Package CooledD²Pak
Power Dissipation @ Temperature Rise2W @ 30°C
Thermal Resistance @ Forced Air Flow3°C/W @ 300 LFM
Outline25.40mm x 19.40mm
Thermal Resistance @ Natural11°C/W
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 7109PD
7109PD
