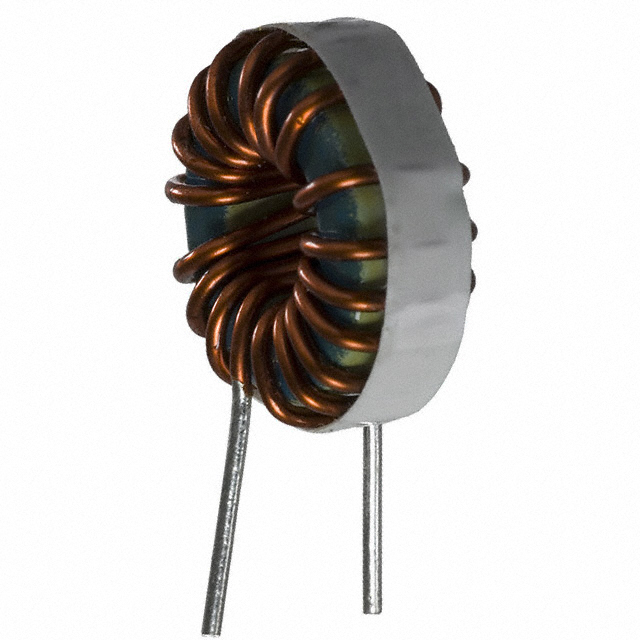

Common Mode Inductors (Chokes) 2.55mH 2amp
7109-RC: Common Mode Inductors (Chokes) 2.55mH 2amp
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Inductance : | 2.55 mH | Tolerance : | 15 % |
Maximum DC Current : | 2 Amps | Maximum DC Resistance : | 0.075 Ohms |
Operating Temperature Range : | - 55 C to + 105 C |
Technical/Catalog Information | 7109-RC |
Vendor | JW Miller A Bourns Company |
Category | Filters |
Inductance | 3mH |
Impedance | - |
DC Resistance (DCR) | 75.00 mOhm Max |
Current | 2A |
Filter Type | Common Mode - 2 Line Array |
Mounting Type | Through Hole |
Package / Case | 0.600" L x 0.450" W x 0.600" H (15.24mm x 11.43mm x 15.24mm) |
Packaging | Bulk |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | 7109 RC 7109RC |
