7038BG

Heat Sinks CHANNEL SLIDE MULTI SIP 15.75mm VERT

product image

7038BG Picture
See larger image
SeekIC No. : 002533856 Detail

7038BG: Heat Sinks CHANNEL SLIDE MULTI SIP 15.75mm VERT

7038BG Data Sheet

floor Price/Ceiling Price

US $ 1.01~1.12 / Piece | Get Latest Price
Part Number:
7038BG
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~2990
  • 2990~4000
  • 4000~6000
  • Unit Price
  • $1.12
  • $1.04
  • $1.01
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : Slide On
Heatsink Material : Aluminum Length : 9.65 mm
Width : 15.24 mm Height : 15.75 mm
Designed for : Multiwatt/SIP

Description

Fin Style :
Thermal Resistance :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : Slide On
Width : 15.24 mm
Designed for : Multiwatt/SIP
Length : 9.65 mm
Height : 15.75 mm


Pinout

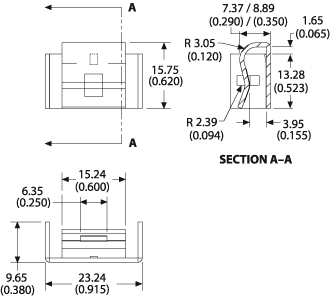

Connection Diagram


Specifications

Part # Description Finish Board Mounting
7038BG Channel style slide on heat sink featuring an integrated clip and device retaining tab Black Anodize N/A



Description

Thermal Resistance 16.00
7038BG
Thermal resistance value is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information7038BG
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodClip
Height0.62" (15.75mm)
MaterialAluminum
Package Cooled-
Power Dissipation @ Temperature Rise1.5W @ 40°C
Thermal Resistance @ Forced Air Flow6°C/W @ 600 LFM
Outline23.24mm x 9.65mm
Thermal Resistance @ Natural16°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 7038BG
7038BG
